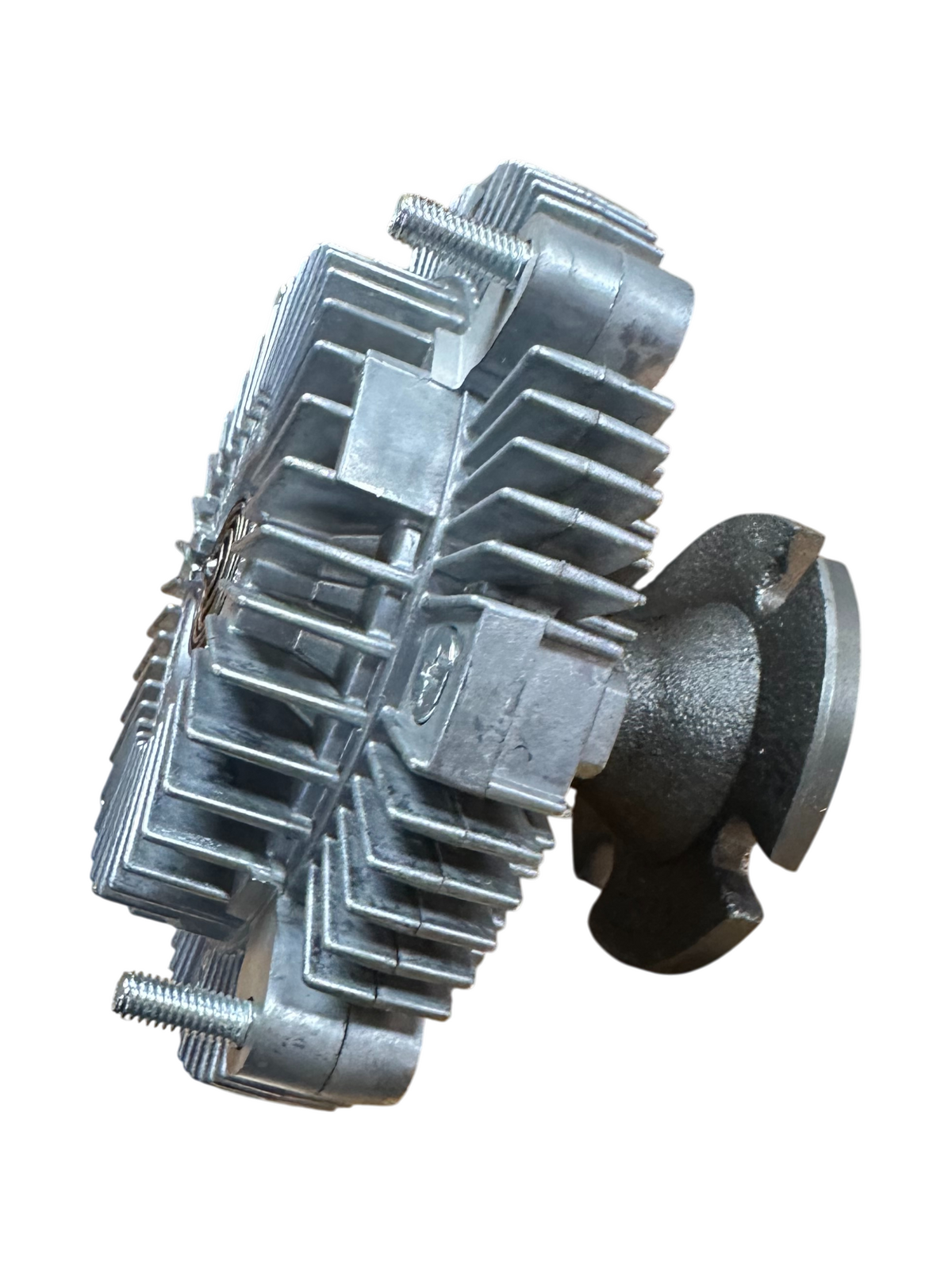

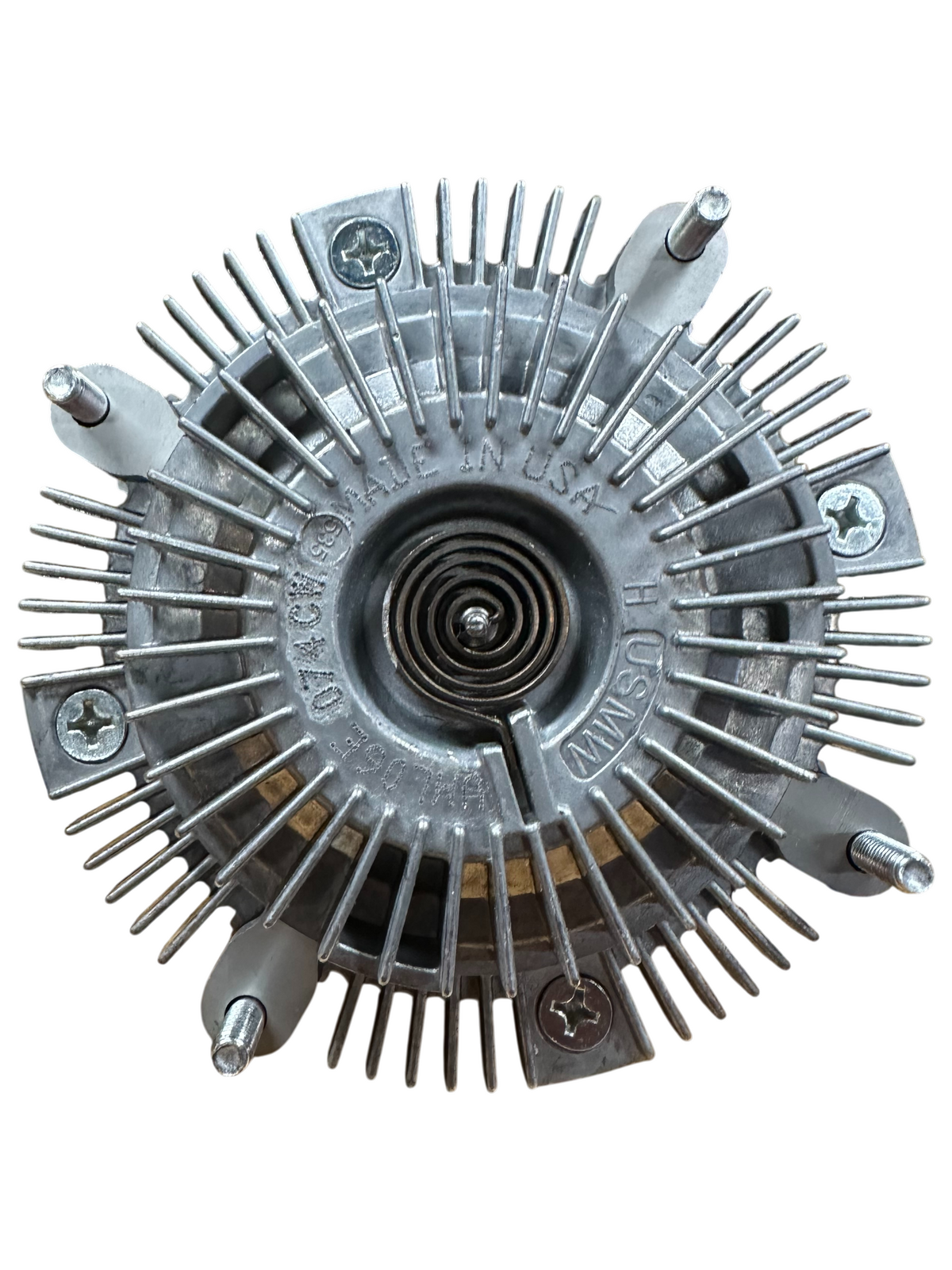

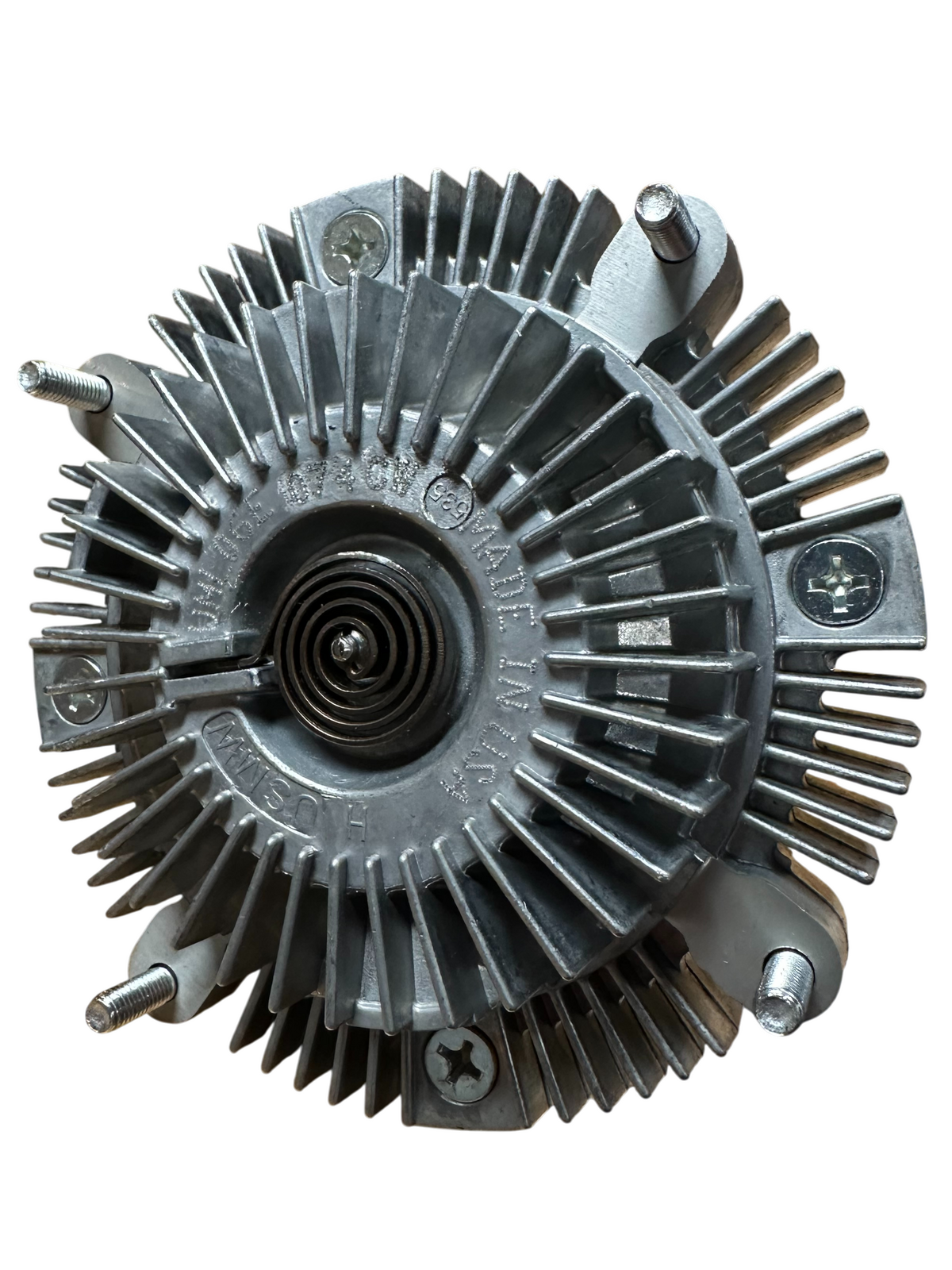

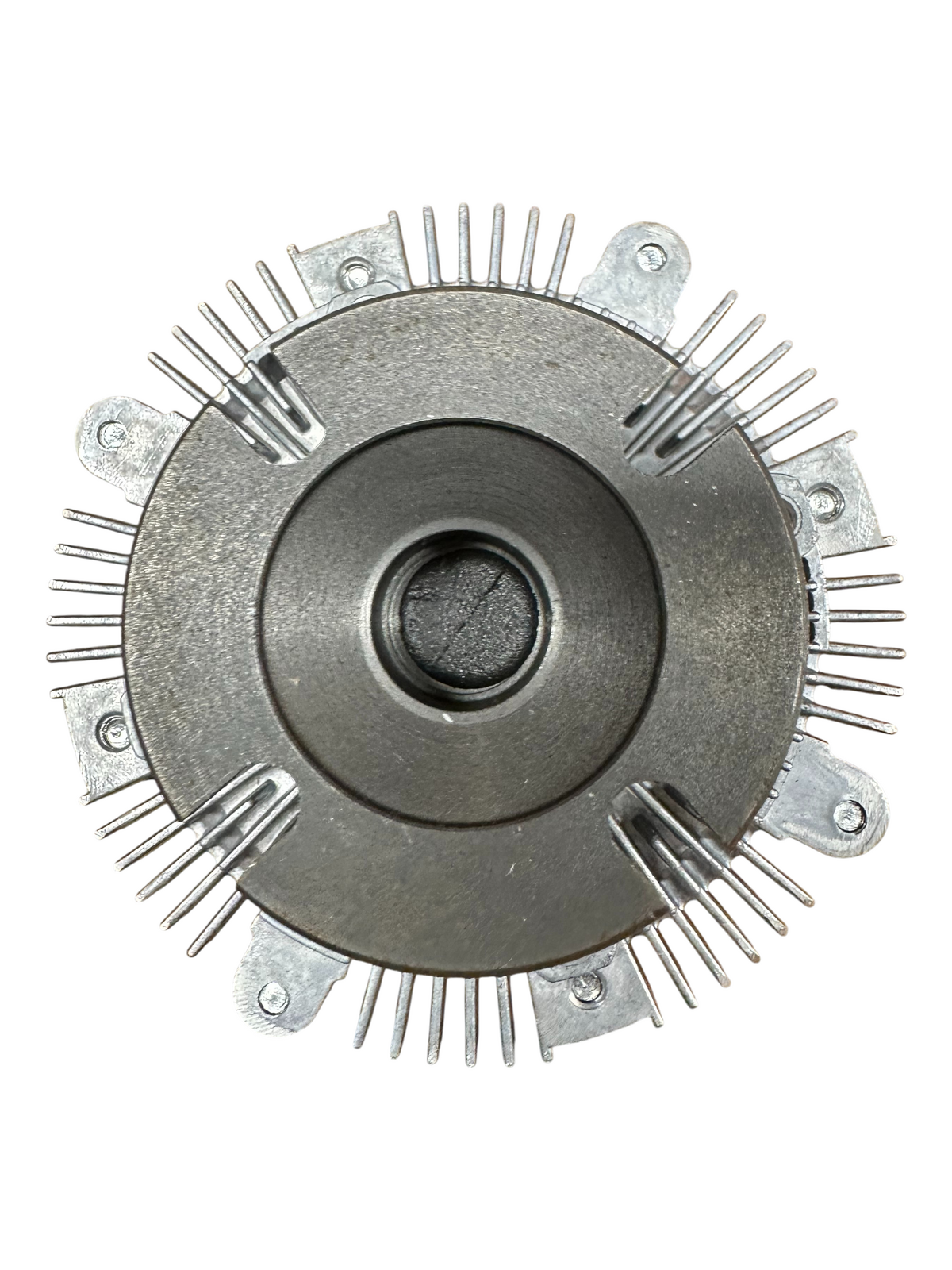

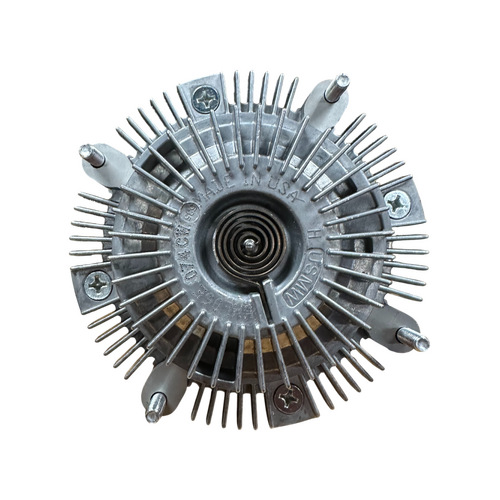

TRUFLO Viscous Cooling Fan Clutch Hub Coupling for Toyota LandCruiser 1FZFE 80 105 series
Viscous hub for Radiator Fan Blade
Toyota Land Cruiser
Toyota Land Cruiser FZJ80 EFI 4.5L 1FZ-FE DOHC 24v Petrol 6CYL 158kW SUV AWD [08/92 - 12/97] - Fan Clutch - Pulley Holes 64mm Ctr to Ctr
Toyota Land Cruiser FZJ105 EFI 4.5L 1FZ-FE DOHC 24v Petrol 6CYL 158kW SUV AWD [03/98 - 07/02] - Fan Clutch - Pulley Holes 64mm Ctr to Ctr
SUITS 22MM WATER PUMPS ONLY!
If you have a 19mm Water Pump you will need to update your water pump to 16100-69415
1FZ-FE 4.5L Petrol 80 &105 series
1992-1997 (80 Series) & 1998-2002 (105 Series)
MADE IN USA
This is for a Hub Coupling Only, The Water Pump Fan is not included in this sale.
The Fan Clutch is designed to allow your engines cooling fan blades to freewheel at low temperatures when cooling is not needed, allowing the engine to warm up faster and reduce unnecessary load on the engine.
As your engines temperature increases, the clutch engages to allow the fan blades to be driven by the engine and reduce engine temperatures.
A failed fan clutch can lead to additional engine load when not required, reducing engine power. It can also lead to reduce cooling fan effectiveness and overheating.
*Always replace the Water Pump if installing a new fan clutch. The Water Pump and Fan Clutch share the same shaft, should either fail, both should be repalced*
Please note this product is an aftermarket product that is designed to fit the above mentioned vehicle(s), any mention of vehicle brand or model is only to allow you to establish the correct fitment for your vehicle, and is not indicating that the part is manufactured by the original vehicle manufacturer.
(TFC144)
SKU | TFC144 |
Model # | TFC144 |
Brand | TRUFLOW |
Shipping Weight | 1.3400kg |
Shipping Width | 0.160m |
Shipping Height | 0.140m |
Shipping Length | 0.160m |
Shipping Cubic | 0.003584000m3 |
