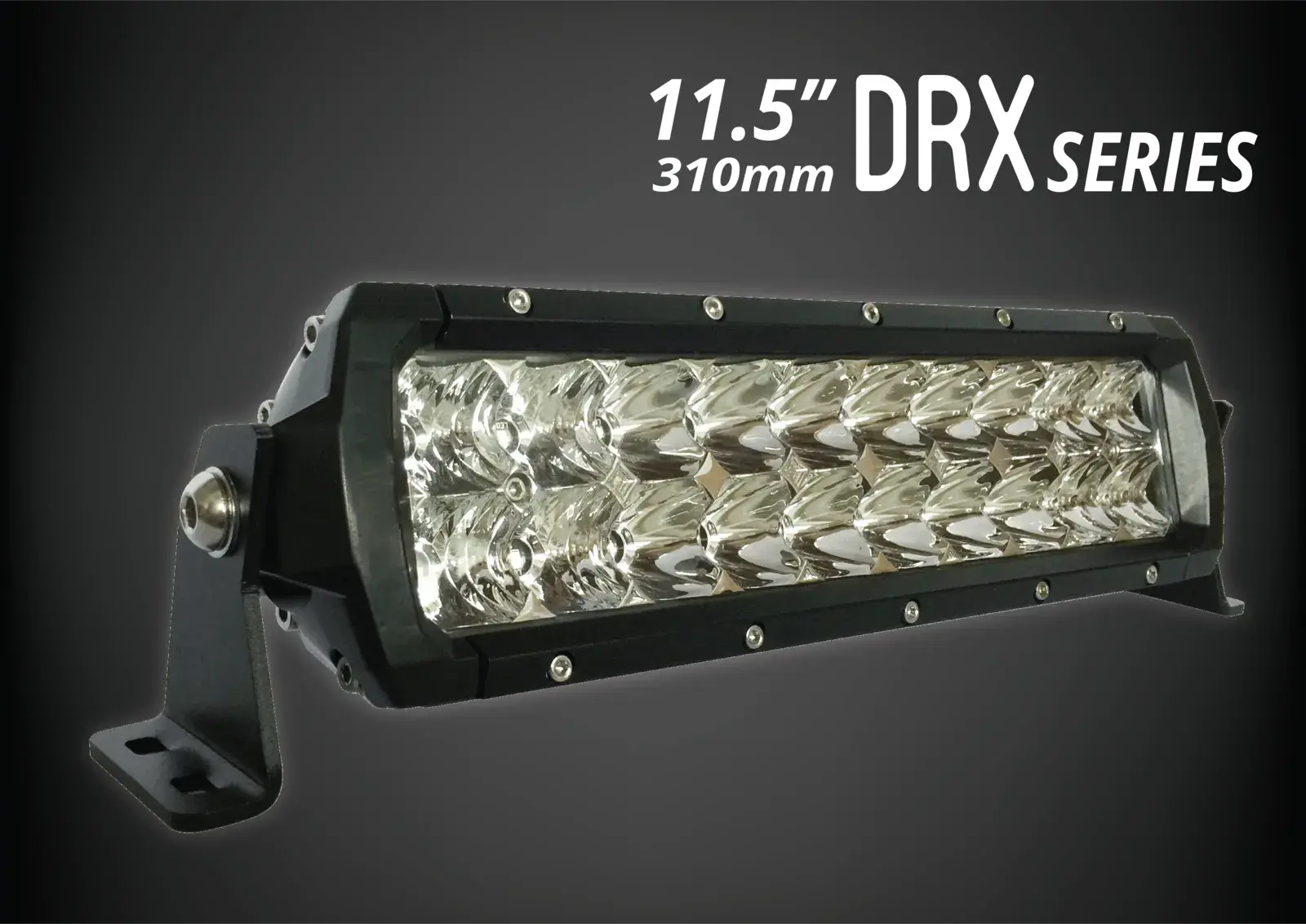

Our all new DRX SERIES 11.5" Inch is the result of our proven experience in delivering high performance LED lighting. Fitted with 20 of OSRAM’s® finest DURIS® LEDs and a combination reflector the DRX series produces a remarkable beam that pushes the flood beam out at 50° and spot beam at 5° all the way to whopping 1 lux @ 460m

resulting in a +65% increase in lux performance in comparison to the outgoing 10 Series LED bars. The DRX range feature our all new TruOptics beam pattern to focus the light where you need it most.

INSTANT PERFORMANCE
The DRX-11 features 20 of OSRAM’s® finest DURIS® LEDs, selected for its high output and matched optical geometry

The combination spot and flood reflector forms an astonishing beam that throwing beam wideout at 50° and spot beam punching all the way down to whopping 1 lux @ 460m

Pure White 5700K Colour temperature offers stunning clarity and definition and optimal Colour Rendering Index (CRI).

New circuit design allows 97% of input power to go directly to LEDs.

BUILT RUGGED

  • Diecast aluminum faceplate, extruded Aluminum heat sink
  • Dupont Powdercoat is UV and abrasion-resistant to ensure that our bars will never discolor.
  • Gore® Military breather protects against water & dust ingress
  • LEXAN Lens is unbreakable and optically clear
  • IP69K - Dust + high-pressure water-proof. No hassle car washing!
  •

VERSATILE MOUNTING
\nTwo separate mounting options

  1. The adjustable sliding mounts allow you to align the mount bolts to any pre-existing mounting holes. This allows for easy mounting to UHF tabs or Bullbars.
  2. End mounts allow for 360 degrees of rotation.

CONTENTS

1 X 11.5” DRX Series Lightbar
2 x Side mount legs
2 x Adjustable bottom sliding legs
1 x Male & female deutcsh connectors

OSRAM LED TECHNOLOGY

Perception DRX series lightbars utilize a 5-watt OSRAM Duris P8 LEDs. The result is amazing distance and flood performance. These high output
5 watt LEDs are not to be confused with competitors inferior 3-watt counterparts.



THE PERCEPTION LIGHTING® GUARANTEE
All Perception Lighting products are manufactured using the highest quality materials. We are so confident that we stand behind this product with a comprehensive 5 Year Australian Warranty.

SPECIFICATIONS

LED POWER   100W (20 x 5W)
LED MANUFACTURER   Genuine OSRAM®
LUX   1 LUX @ 460m
BEAM DISTANCE   0.25 LUX @ 920m
BEAM PATTERN   Combination Spot & Flood
OUTPUT   6426 Lumens
HOUSING MATERIAL   Diecast Aluminium
LENS MATERIAL   GE Lexan Polycarbonate
MOUNTING BRACKET   Side & Bottom
OPERATING VOLTAGE   10-30V DC
COLOUR TEMPERATURE   5,700K
LED LIFESPAN   50,000 hours
CERTIFICATIONS   CE, RoHS, C-Tick

(DRX-11)

SKU DRX-11
Barcode # 702785126042
Brand Perception Lighting
Shipping Weight 2.0000kg
