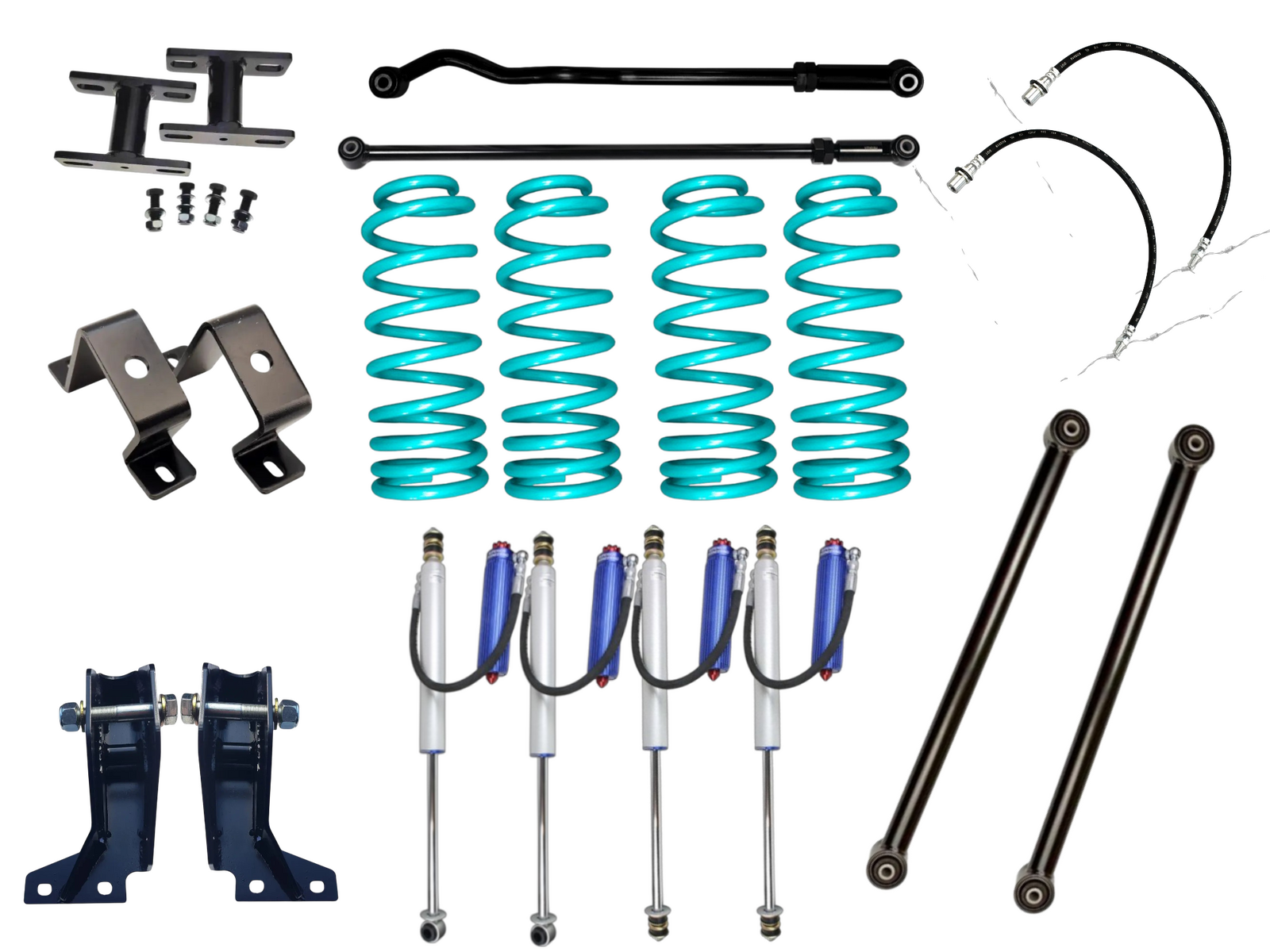

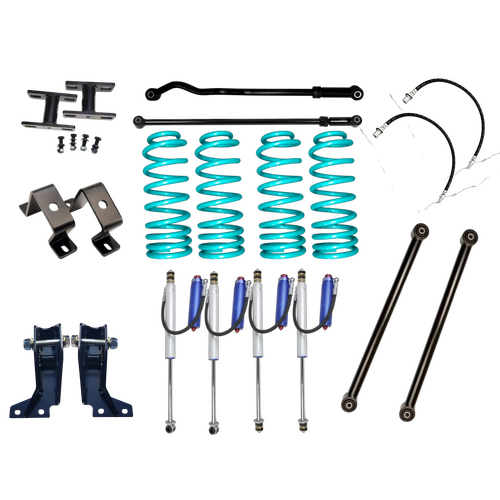

3'' (75mm) Stage 3 Suspension kit

to suit:
Toyota Land Cruiser 80" or 105" Live axle

Front & Rear 3'' springs

Front & Rear 3'' Superior Remote Monotube 2.0 Shocks

Front Radius Arm Left & Right Caster Correction Drop Boxes ( We will ask if you have manual or auto trans when we contact you )

Front & Rear Sway Bar Extensions

Front & Rear Extended brake lines (Non ABS Models) We need to clarify with you if have ABS as these are different brake lines

11mm Longer H/D Rear Lower Control Arms

Adjustable Panhard Rods Front & Rear.

Brake Proportioning Bracket

We Customize the springs and kit components to suit your vehicle and needs

Please make sure there is a phone number in your order details so we can contact you after the purchase to discuss your vehicle and spring options.

POSITION ADJUSTABLE

LANDCRUISER 80 105 SERIES

Wagon and Coil Cab chassis, Does not suit leaf sprung models )

Fully Adjustable For Complete Control

8-Stage Compression Adjuster reservoir gives you the ability to precisely adjust compression from soft to firm with the simple twist of a knob. Allowing you to soften the ride when just cruising or firm up the compression when tackling rough terrain or carrying a load.

Heat Treated Alloy Steel Piston

Features race inspired port configurations and variable rate shim stack technology to provide vehicle specific damping performance and optimum ride quality. A composite Teflon wear band offers low internal resistance and high compressive strength enhancing shock performance.

Spherical Rod End Assembly - Strut

High performance spherical rod end assembly designed for correct clearance and increased strength to suit your application. Fitted with Teflon-lined Commercial Grade spherical bearings for smooth articulation and longest life.

Remote Reservoir Canister

Remote Reservoir Canister for increased oil volume, and greater cooling capacity. Internal Floating Piston separates the shock Oil and Nitrogen eliminating Foaming or mixing of the oil and gas that produces shock fade.

Highest Quality Materials

CR3+ plated Bored and Honed cylinder tubes, Aircraft quality billet aluminium components, High pressure hydraulic hose and seals.

Plus the 20mm Hard-chromed shafts are designed for maximum strength and durability in lifted and performance applications.

Fully Rebuildable For Long Life

These Superior Remote Reservoir Shocks are fully Rebuildable, Serviceable and Upgradeable. All parts are carried in stock and allow the user to finely-tune, adjust and service their shocks, ensuring you get the longest life possible from your suspension.

Features

8 stage compression adjustment with a simple turn of the knob mounted on the remote reservoir
46mm Piston with Teflon
20mm super polished shaft
53mm outer body
floating piston inside reservoir
Cr+3 Surface finsh
Unique Valving and Piston Design
Longest travel remote reservoir for any given size lift

Length Front :

Open 640mm
Closed 372mm
Travel 268mm

Length Rear :

Open 647.5mm
Closed 395.5mm
Travel 252mm

Delivery pricing is Calculated to your location via Courier.
Use our calculator at the top with your postcode.

Tracking available for all items.

Be sure to check our store for a huge range of suspension kits, components and other accessories.

We can make suspension kits to suit your needs at excellent prices, ask us for a combination quote.

Please note this product is an aftermarket product that is designed to fit the above mentioned vehicle(s), any mention of vehicle brand or model is only to allow you to establish the correct fitment for your vehicle, and is not indicating that the part is manufactured by the original vehicle manufacturer.

(TOY80105-3-STAGE3-KIT-SUP)

SKU	TOY80105-3-STAGE3-KIT-SUP
Brand	Dobinsons
Shipping Weight	95.0000kg
Shipping Width	0.600m
Shipping Height	0.500m
Shipping Length	1.200m
Shipping Cubic	0.360000000m3
