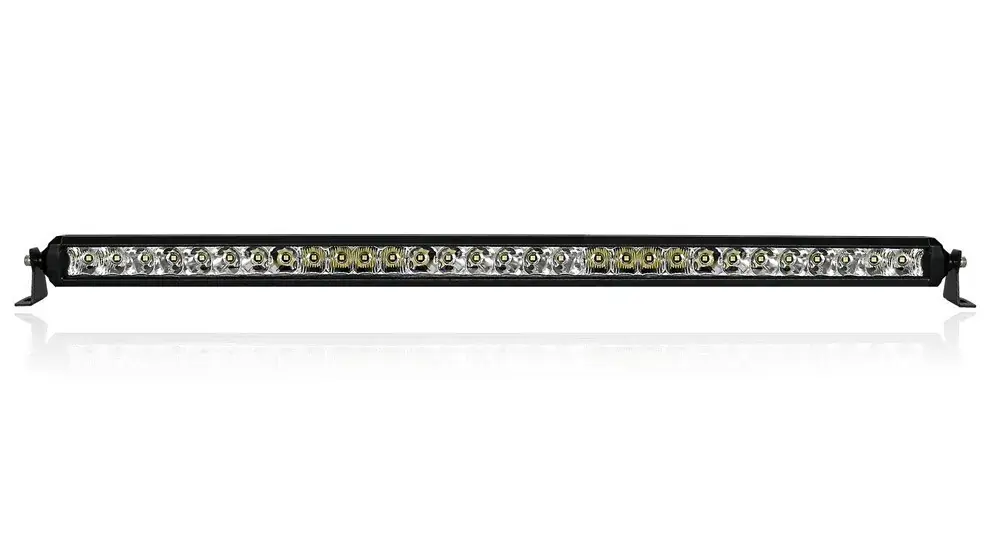

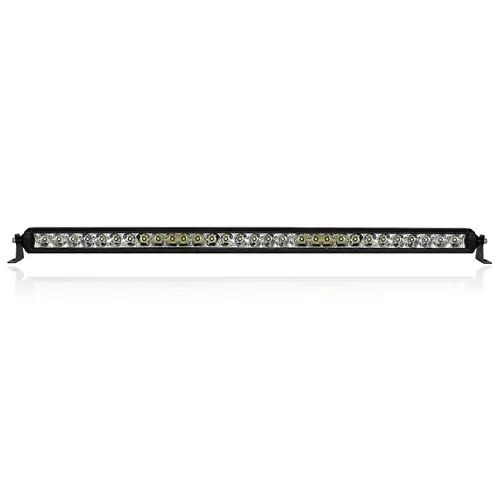

Our all new SRX SERIES 30.5" Inch is the result of our proven experience in delivering high performance LED lighting. Fitted with 30 of OSRAM’s® finest DURIS® LEDs and a combination reflector the SRX series produces a remarkable beam that pushes the flood beam out at 50° and spot beam at 5° all the way to whopping 1 lux @ 600m

The SRX range feature our all new TruOptics beam pattern to focus the light where you need it most, resulting in a +65% increase in lux performance in comparison to the outgoing 10 Series LED bars.


The SRX-30 features 30 of OSRAM’s® finest DURIS® LEDs, selected for its high output and matched optical geometry

The combination spot and flood reflector forms an astonishing beam that throwing beam wideout at 50° and spot beam punching all the way down to whopping 1 lux @ 600m

Pure White 5700K Colour temperature offers stunning clarity and definition and optimal Colour Rendering Index (CRI).

New circuit design allows 97% of input power to go directly to LEDs.


  • Diecast aluminum faceplate, extruded Aluminum heat sink
  • Dupont Powdercoat is UV and abrasion-resistant to ensure that our bars will never discolor.
  • Gore® Military breather protects against water & dust ingress
  • LEXAN Lens is unbreakable and optically clear
  • IP69K - Dust + high-pressure water-proof. No hassle car washing!


  • End mounts allow for 360 degrees of rotation.
  • Slim profile allows fitment in low clearance applications.


  • 1 X 30.5” SRX Series Lightbar
  • 2 x Side mount legs
  • 1 x Male & female Deutsch connectors


Perception SRX series lightbars utilize a 5-watt OSRAM Duris P8 LEDs. The result is amazing distance and flood performance. These high output
5 watt LEDs are not to be confused with competitors inferior 3-watt counterparts.


All Perception Lighting products are manufactured using the highest quality materials. We are so confident that we stand behind this product with a comprehensive 5 Year Australian Warranty.



LED Power   50W (10 x 5W)
LED Manufacturer   Genuine OSRAM ®
LUX   1 LUX @ 600m
Beam Distance   0.25 LUX @ 1200m
Beam Pattern   Combination (Spot & Flood)
Output   18240 Lumens
Housing Material   Diecast Aluminium
Lens Material   GE Lexan Polycarbonate
Mounting Bracket   Side
Operating Voltage   10-30V DC
Colour Temperature   5,700K
LED Lifespan   50,000 hours
Certification   CE, RoHS, C-Tick



Barcode # 702785126332
Brand Perception Lighting
Shipping Weight 3.0000kg
