ARBs Brushless On-board Single Compressor

Features & Benefits

• ARB Brushless has an additional 50% in output when compared to our current market leading ARB brushed compressor, meaning less time inflating and more time adventuring at only a fraction larger than the brushed
• Active Cooling – An active cooling system has been included with a fan in each motor/compressor assembly to achieve higher performance and longevity
• Electronic Speed Control - Maintains optimum performance and operations across all pressure and ambient temperature conditions
• Status Reporting – Live diagnostics via audio and visual alerts
• Voltage and Overload Protection – Protects the compressor and power supply from damage due to voltage spikes, drops, fluctuations, overcurrent, and motor stalls
• Continuity in Function – The ARB Brushless is constantly monitoring itself and can make adjustments to account for factors such as temperature and variations in vehicle charging systems
• Quick-release Mounts – Onboard units can be removed using cam-lock quick-release mounts, making installation and removing simple process
• Relays Eliminated – The inclusion of the brushless motor also means there is not any need for the mounting of relays, further reducing the install time
• IP67 Water Resistant
• 3 Year Warranty

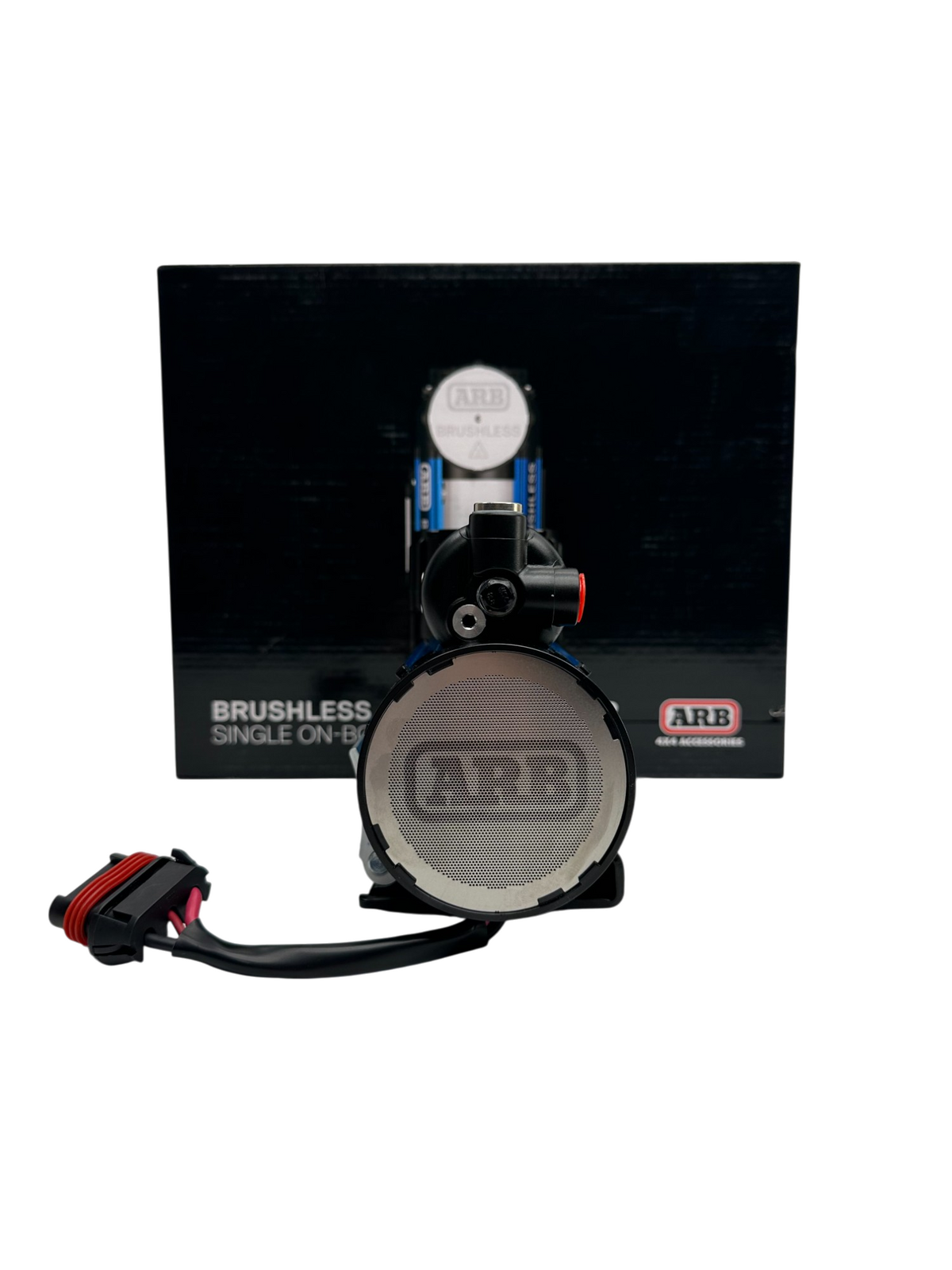

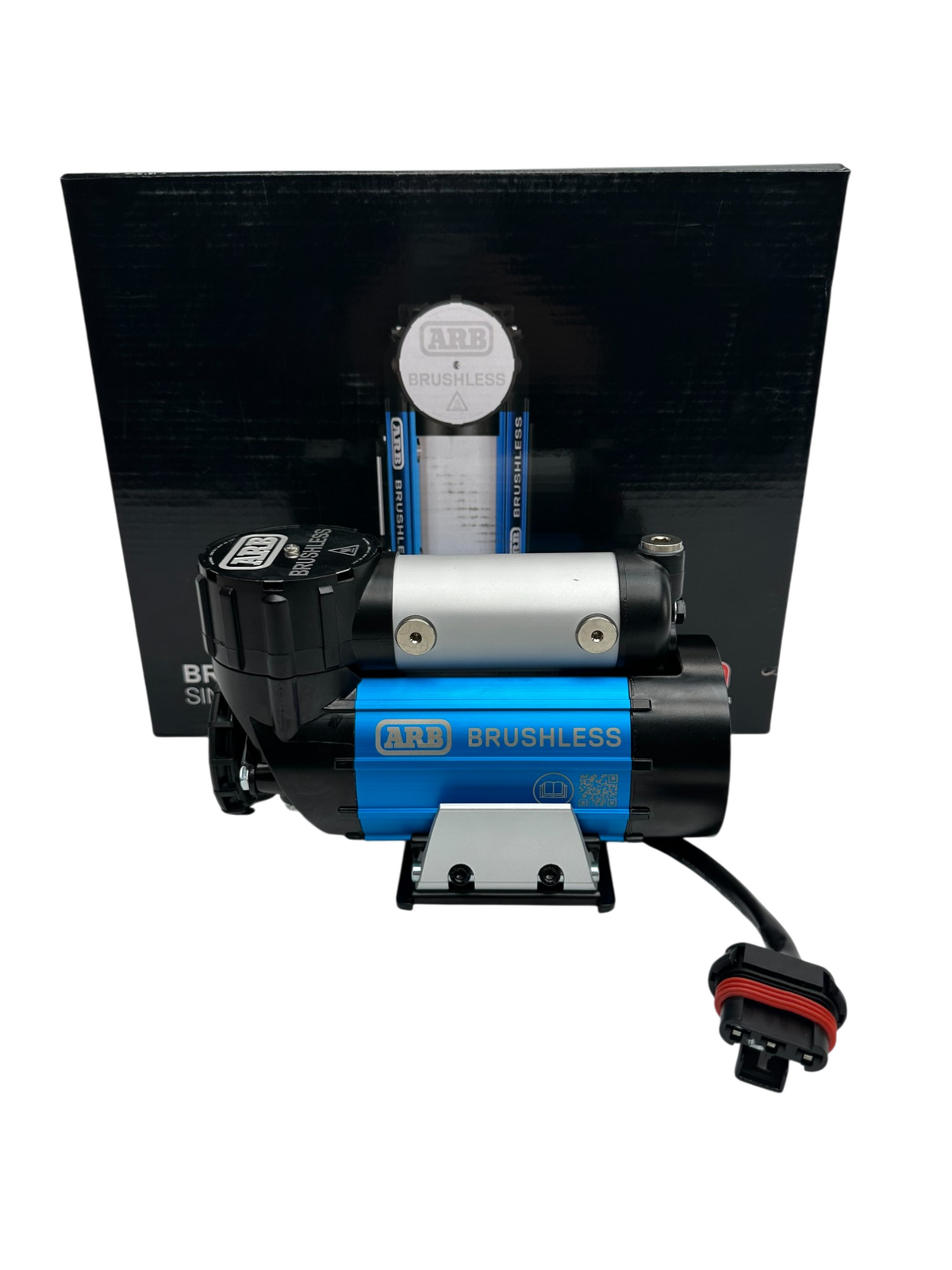

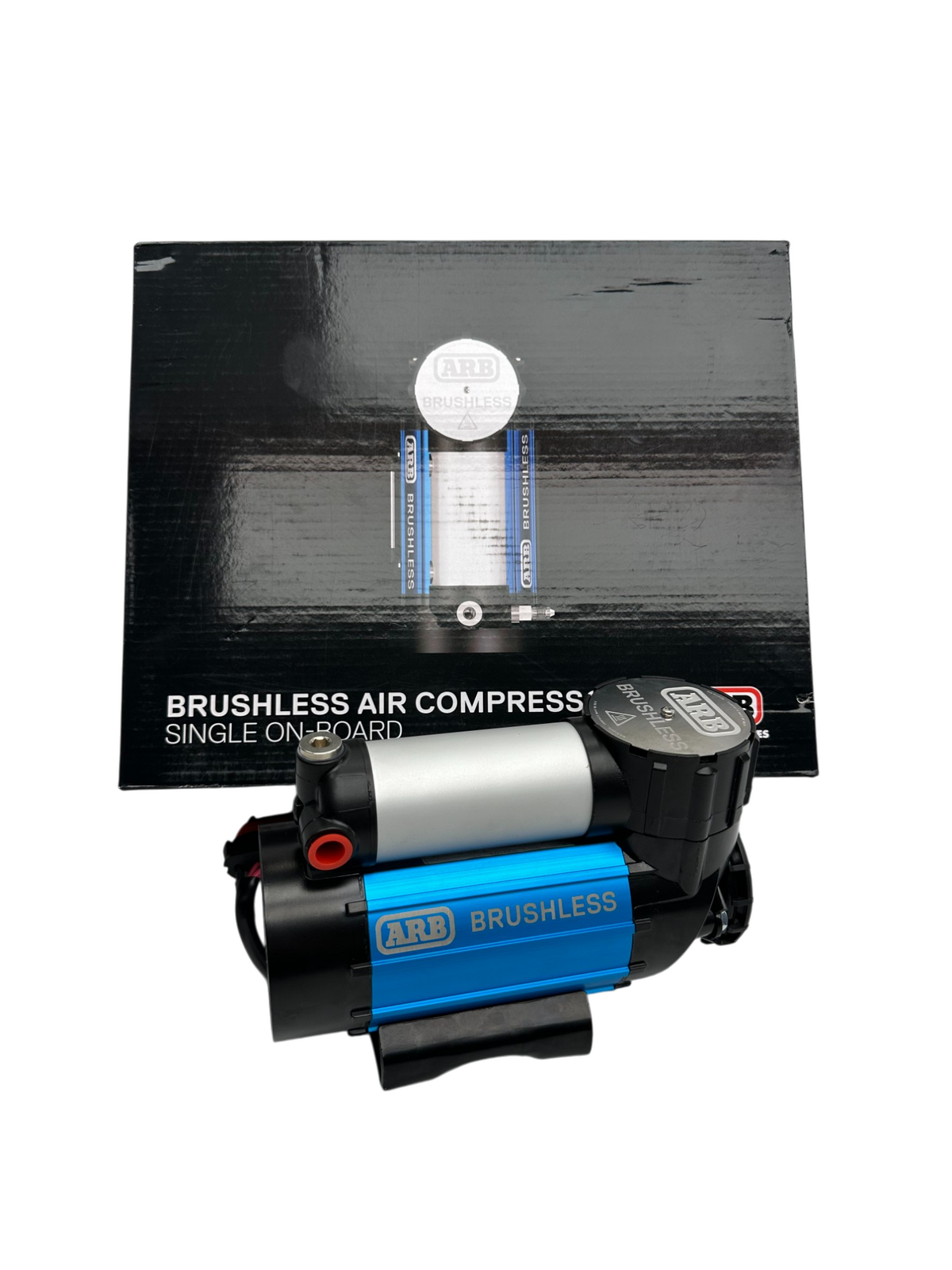

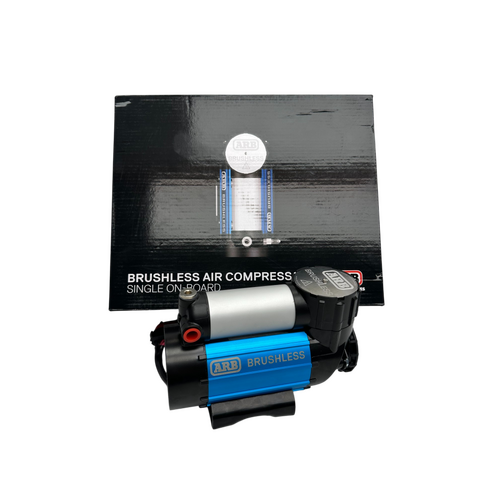

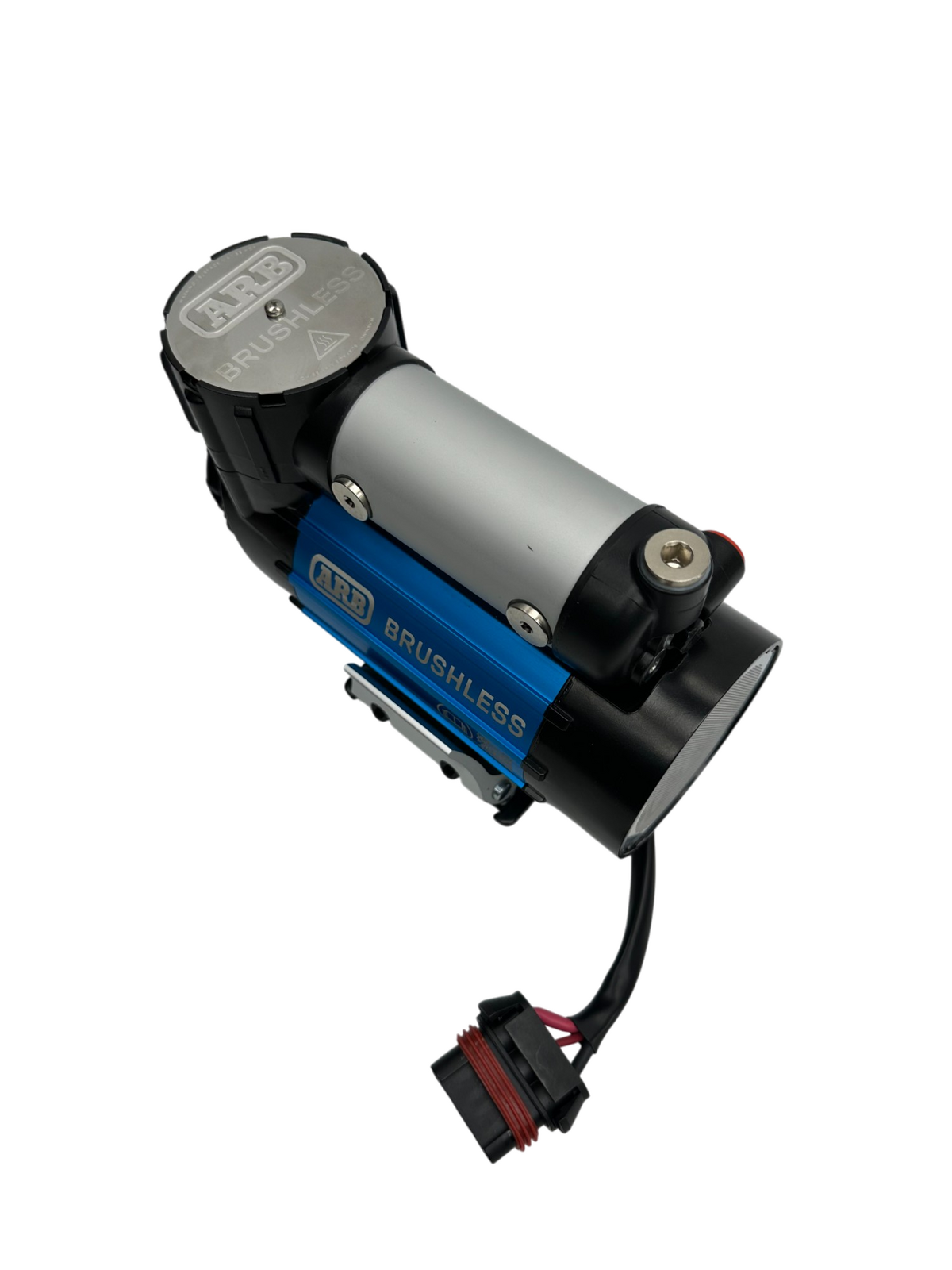

CKBLA12 | Brushless Single On-Board

Supply Volatge: 12 (11.5 - 15)

Current Draw (No Load): 15A

Airflow at 0 Kpa (No Load): 130L/m

Airflow at 0 Psi (No Load): 4.59CFM

Current Draw (Load): 40A

Airflow at 200 Kpa: 88L/m

Airflow at 29 Psi: 3.1CFM

Airlocker Solenoid Manifold: YES

Pressure Cut Off Switch: 135/150
