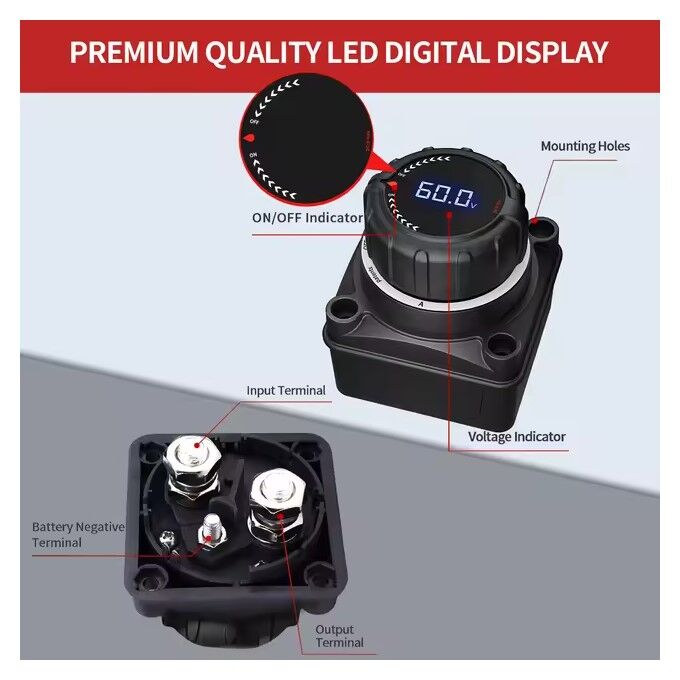

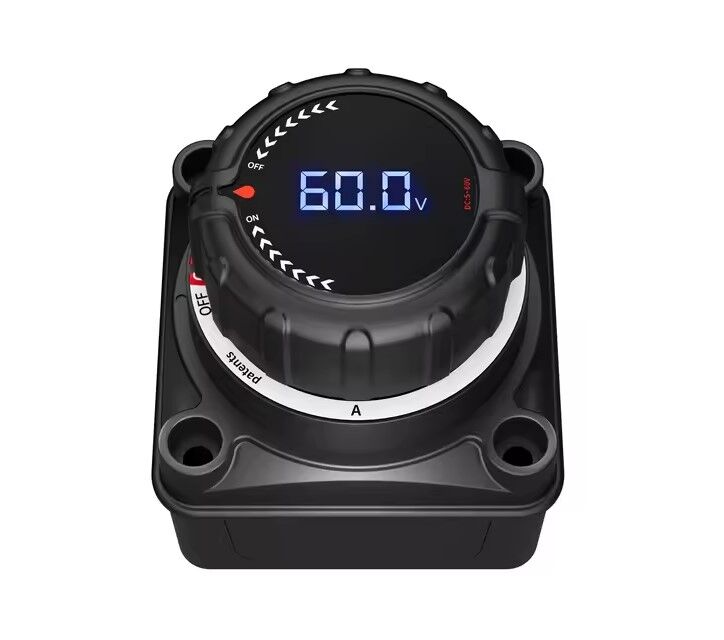

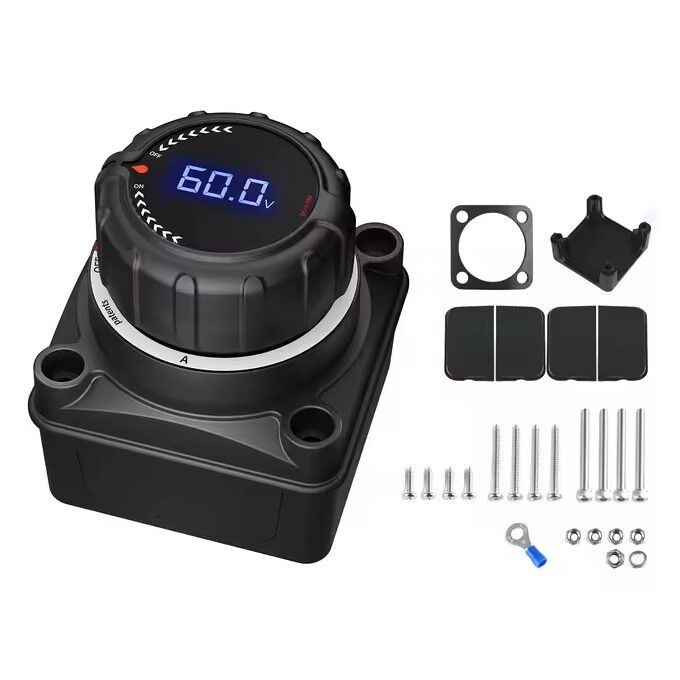

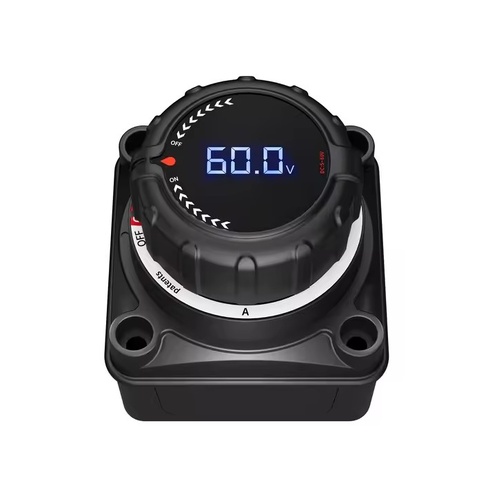

Power Isolater Switch with Voltage Display

Can be used for 4WD, winches, cars, RV, trucks, yachts etc.

This Isolator Battery Kill Switch is used in DC 5-60V systems to isolate and secure the electrical system, eliminate any power draw from the battery when the vehicle is not in use, to quickly disonnect the battery safely, provide a reliable way to shutdown electrical power during maintenance and protect batteries from excessive drain.

Single Pole Isolator

Enabling you to open or kill the power

Specifications:



  • Material: Nylon Shell, Copper Silver-plated screws
  • Switch Type: Single circuit ON/OFF
  • Color: Black
  • Operating Voltage DC 5-60V
  • Accuracy: 1%+2digital
  • Resolutio: 0.1V

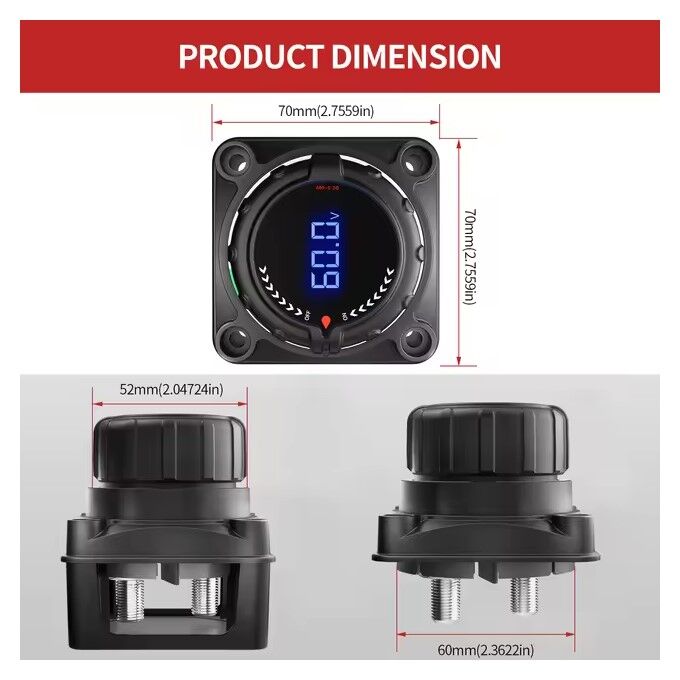

  • Terminal Diameter: Input 3/8" (10mm)(Excluding Ring Connect)
Output 3/8" (10mm)(Excluding Ring Connect)
Battery: 1/4" (6mm)(Including 2-6 Ring Connect Awg 14~16 Wires)
  • Terminal Material: Silver-plated Copper
  • Current: 250A continuous at DC 12V, 200A for 30 minutes
  • 2 Positions: ON/OFF
  • Operating Temperature: -40C to 80C
  • Operating Humidity: <90%



(YDS611)

SKU YDS611
Brand Road Runner Offroad
Shipping Weight 1.0000kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.100m
Shipping Cubic 0.000500000m3
