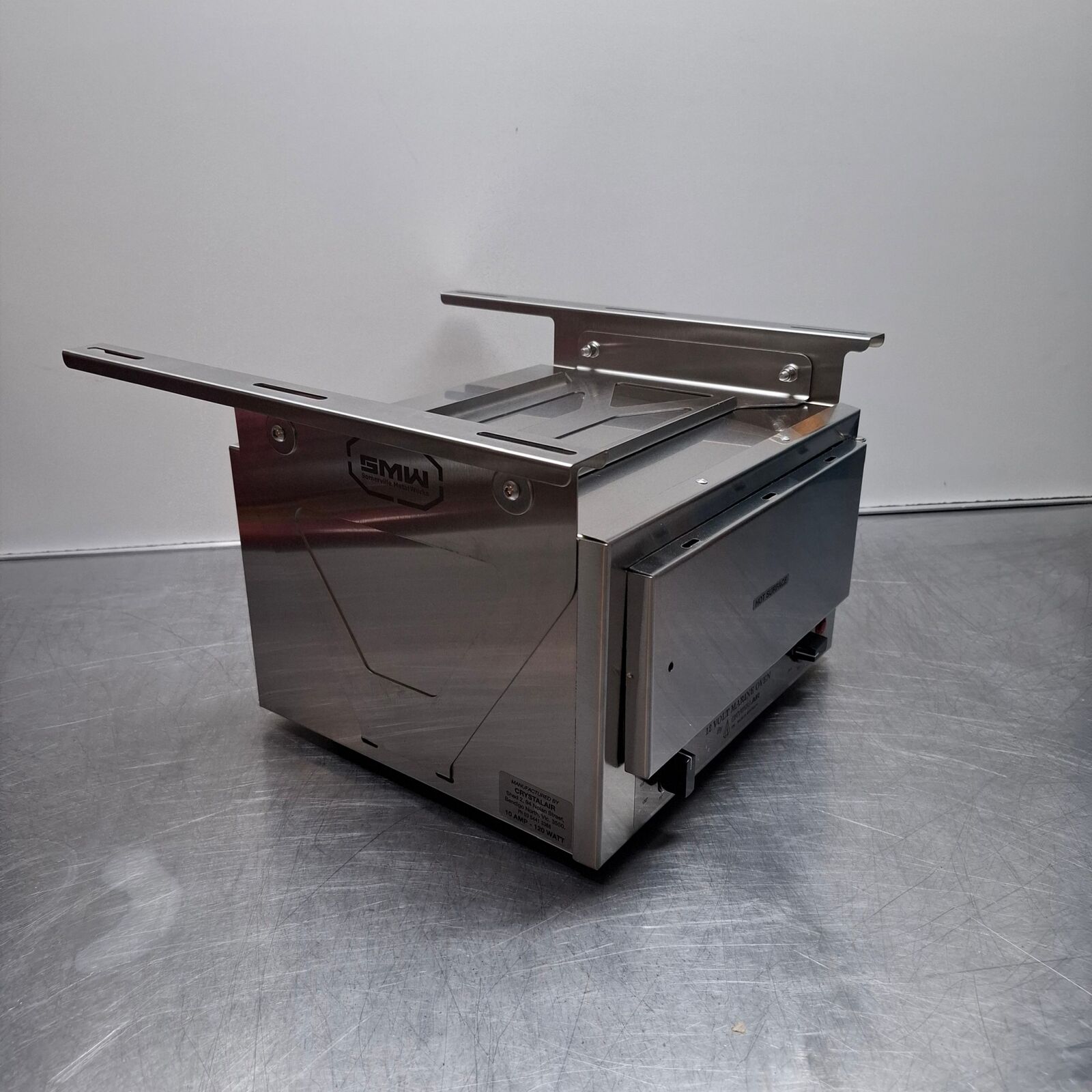

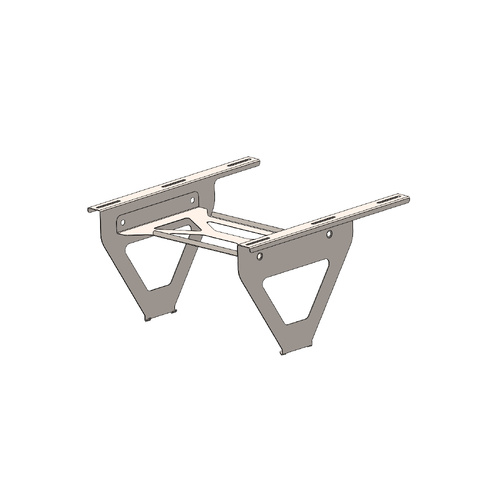

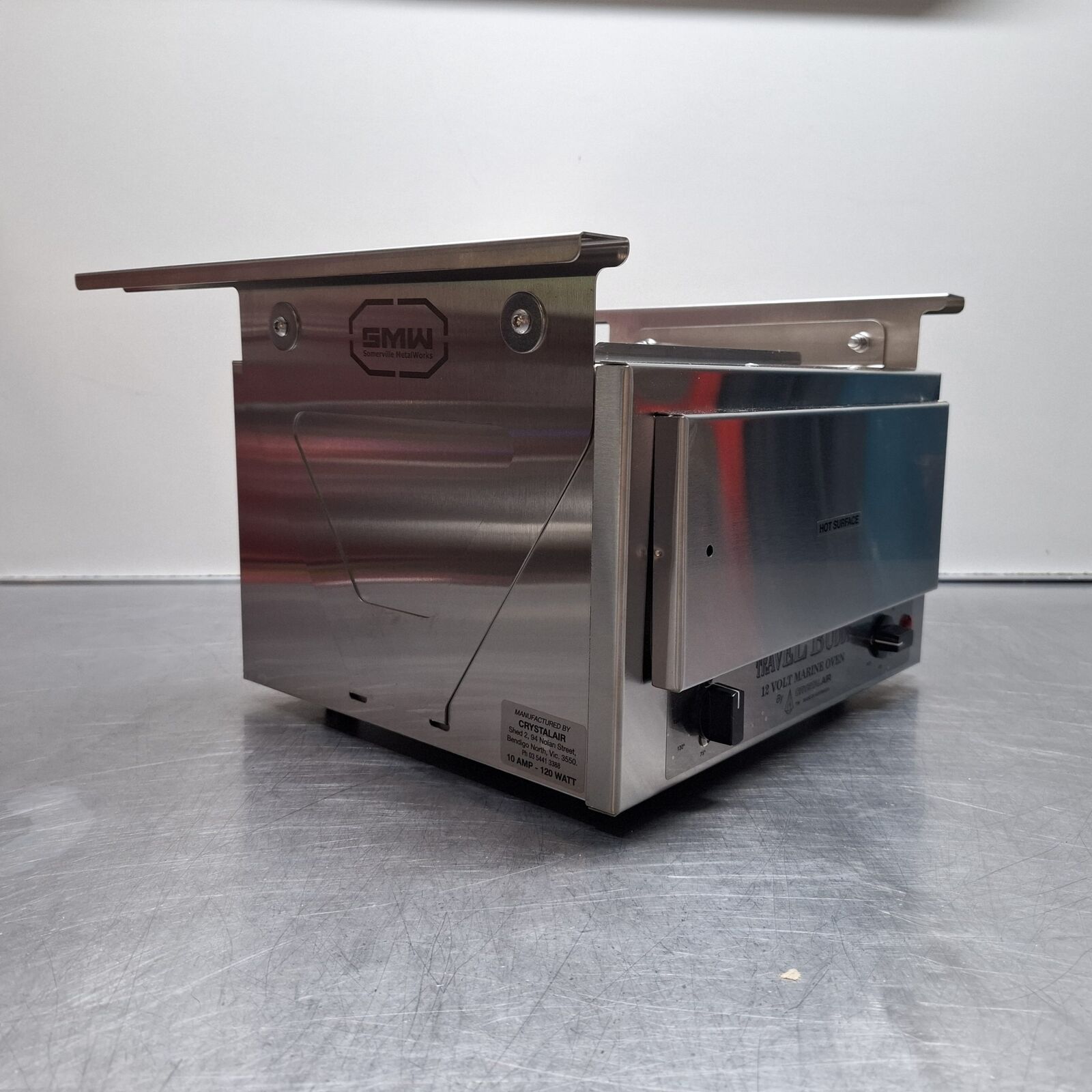

Canopy Mounting Brackets Offset 50mm Drop for Travel Buddy Marine and 24v Oven

These Bracket are designed to be screwed/ bolted into canopy roof framework be it RHS or Unistrut style (Mitsalloy style).

Unlike the Standard brackets these will drop the oven 50mm lower to allow for clearance on Canopy Framework.

This offset version allows the oven to come forward closer or if flipped around move oven back (55mm).

They have slots to cater to different distance framework and you can drill you own holes if needed.

Slots are designed for 6mm bolt 160mm min to 370mm max in spacing. Width (looking from front of oven) between slots is 352mm.

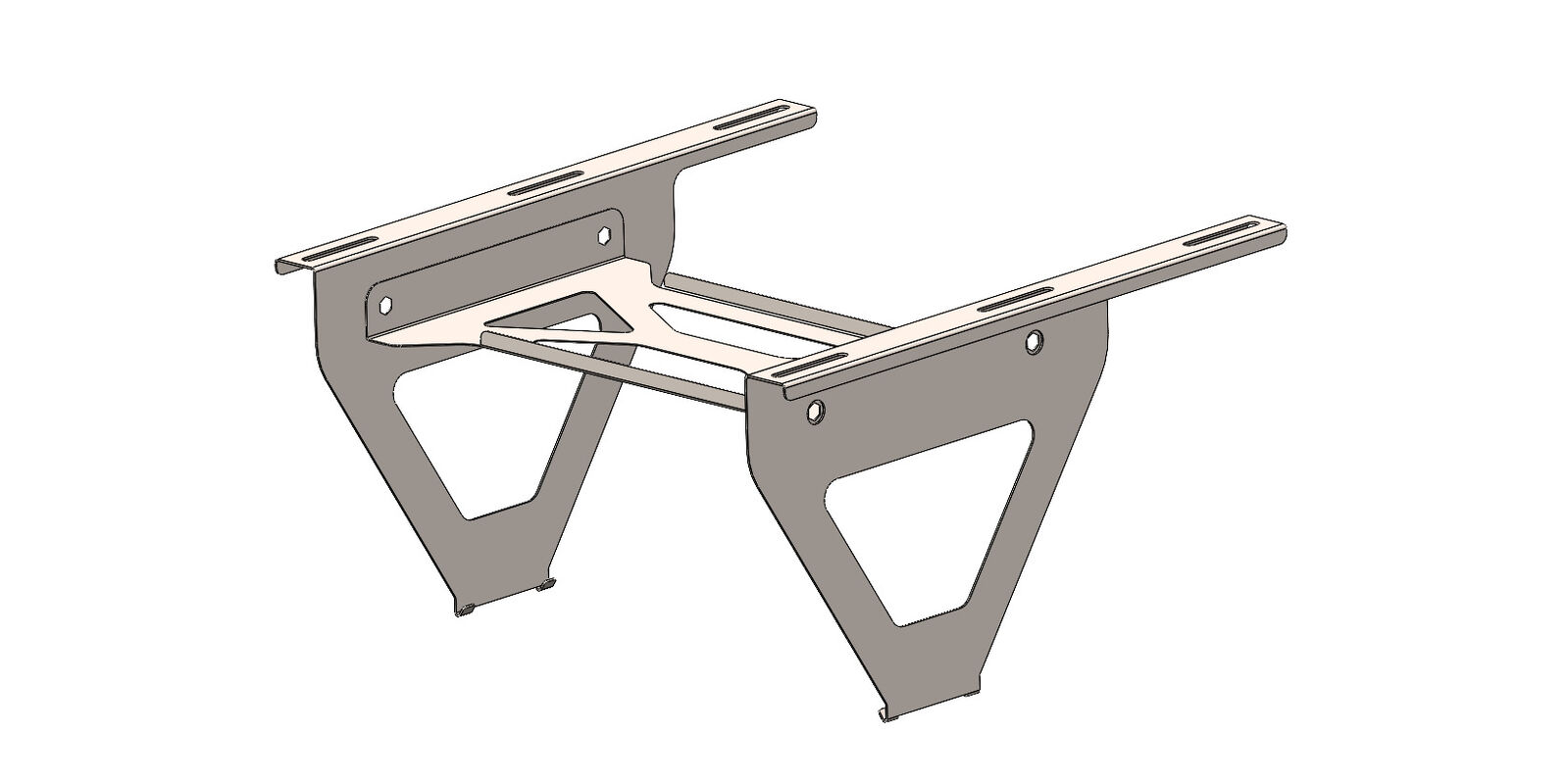

Brackets when assembled is 380mm long and 390mm wide

Note: These Brackets are designed to work the Travel Buddy Marine and 24v Oven. They may and should work with other similar ovens

Made in Australia from 1.2mm stainless steel  with all stainless hardware.

Precision CNC Lasercut, Folded and Passivated.

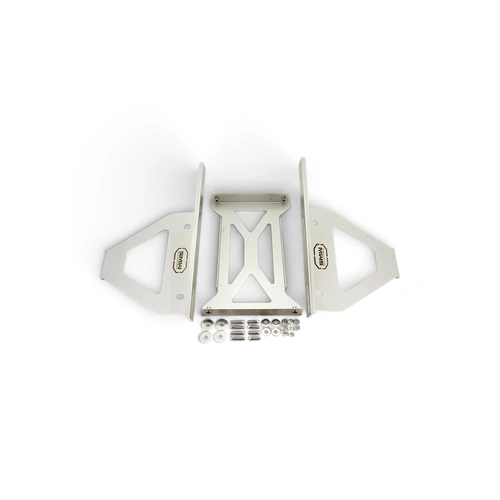

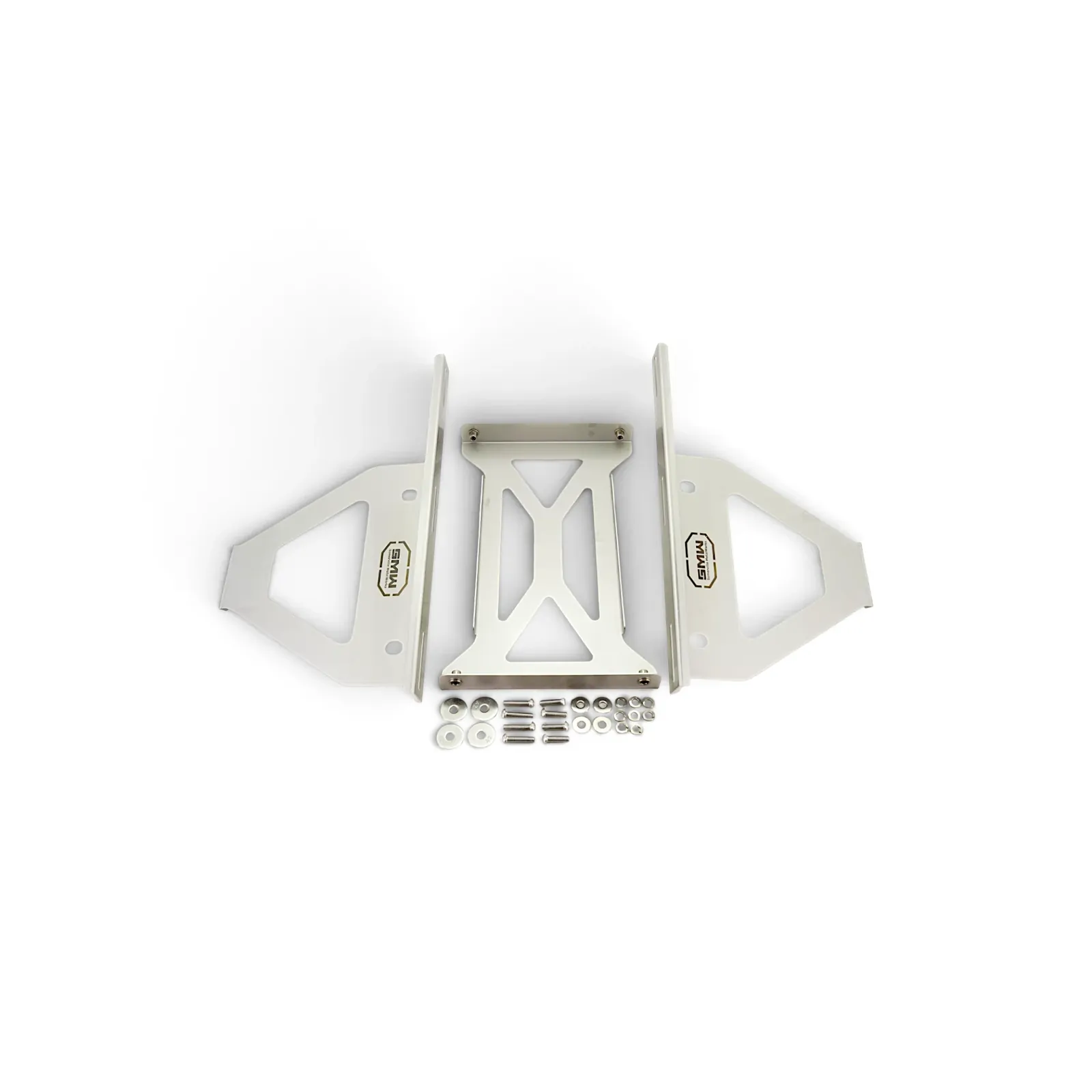

Sold as a set with hardware included
