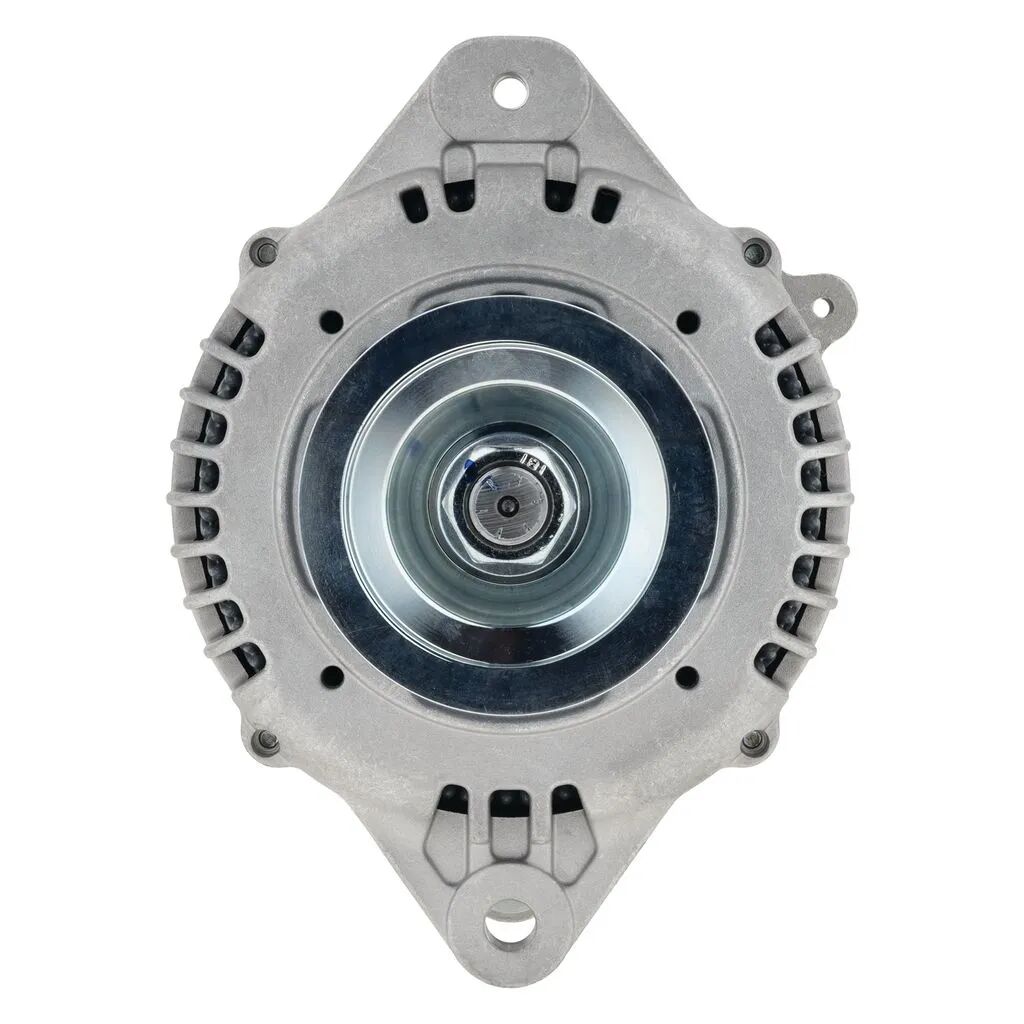

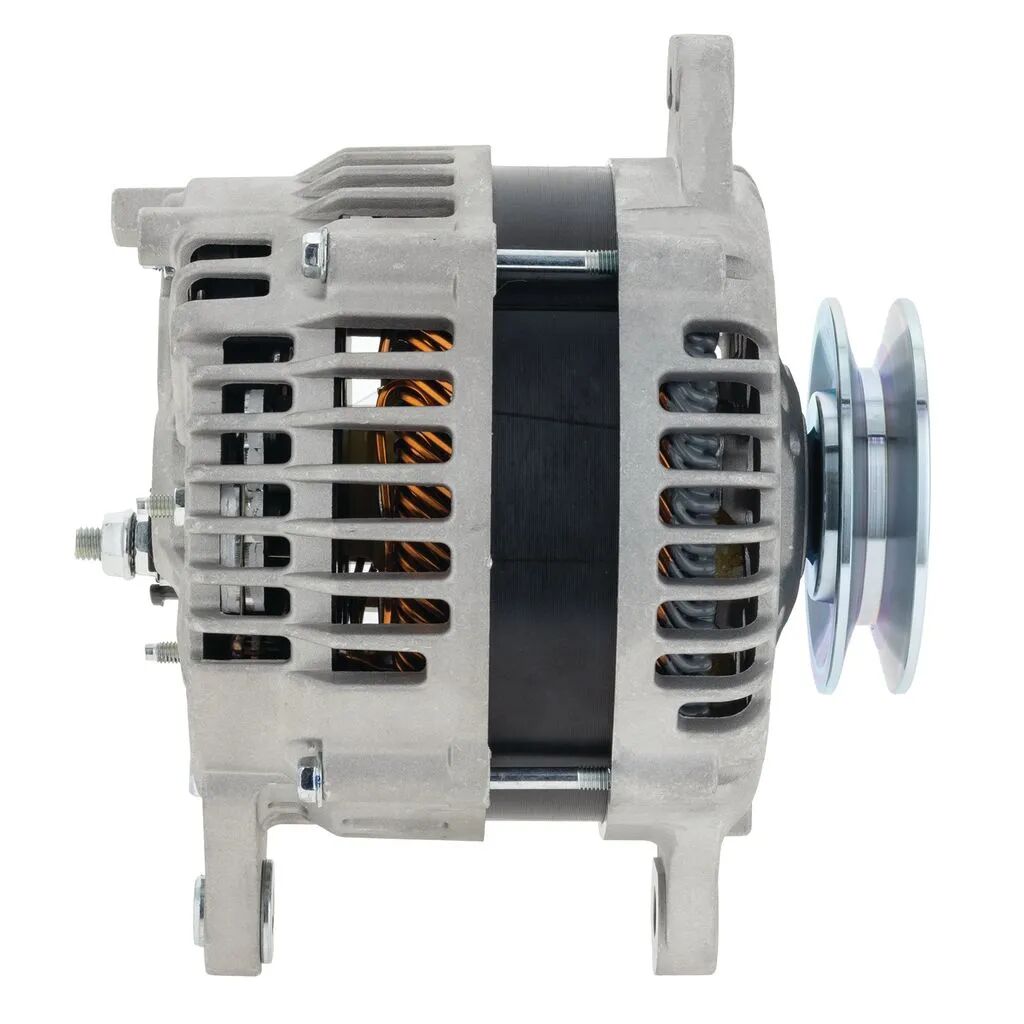

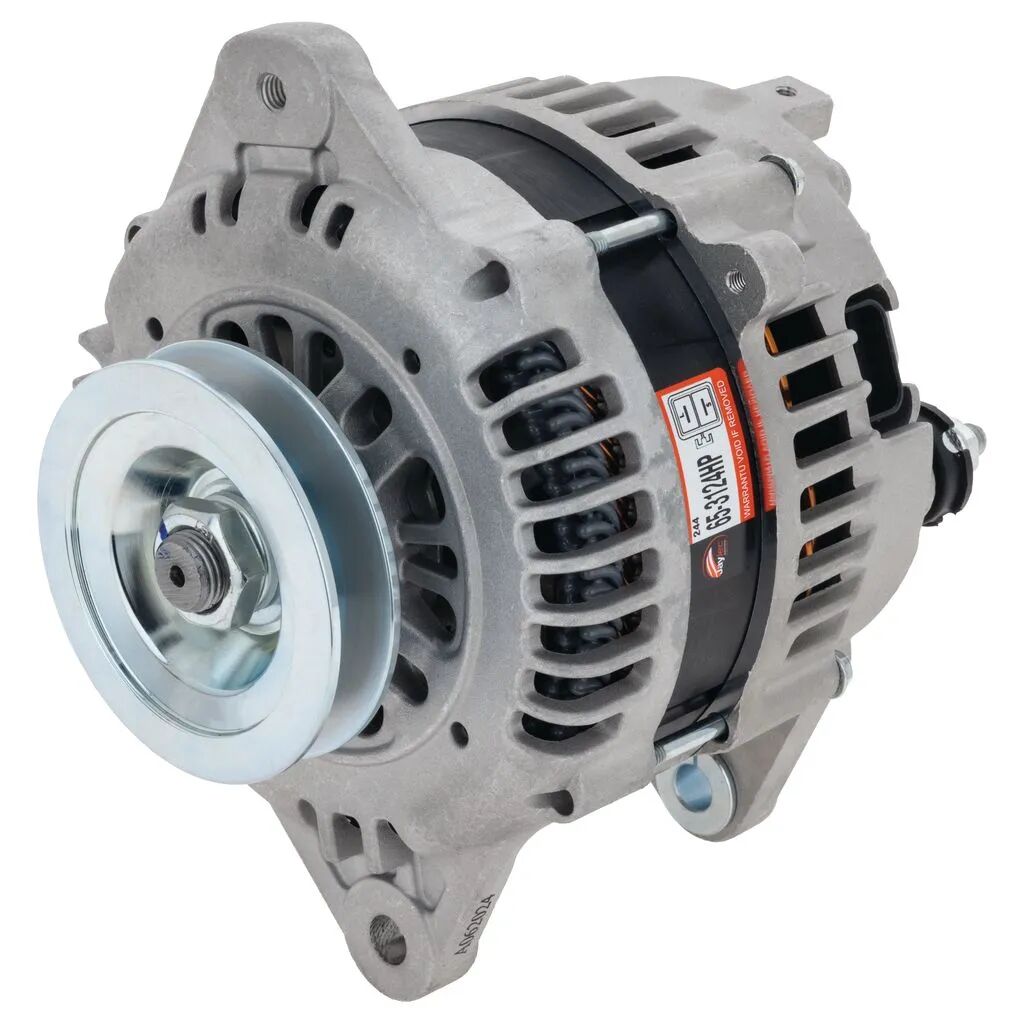

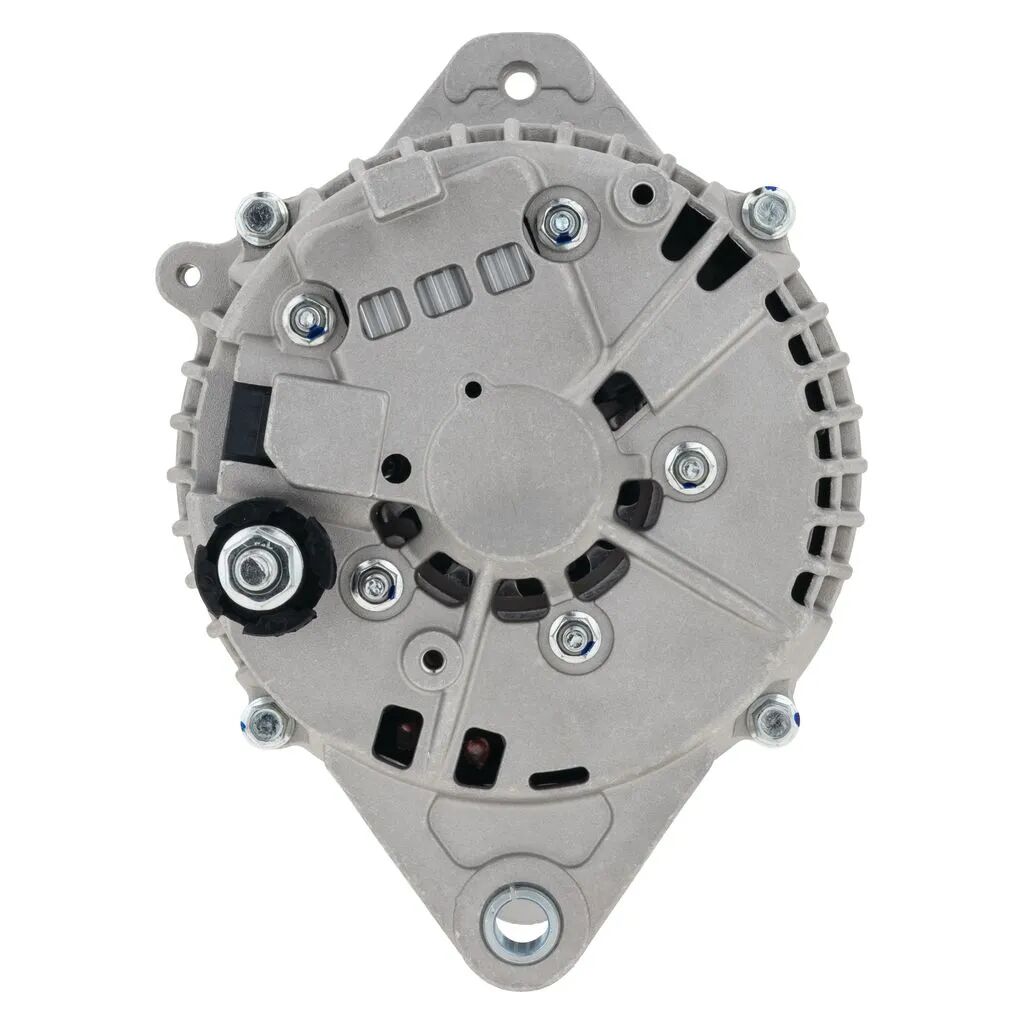

65-3124HP JAYLEC 12V 145A Heavy Duty Alternator – Internal Regulator

Upgrade your charging system with the reliable and high-output JAYLEC 65-3124HP Alternator. Designed for demanding automotive and industrial applications, this alternator delivers a strong 145A output with dependable internal regulation for stable charging performance.

Built with a durable heavy-duty housing and supplied with a single “A” pulley configuration, the 65-3124HP is ideal for vehicles and machinery requiring consistent electrical power for accessories, lighting, audio systems, winches, and auxiliary equipment.

Features

  • High output 145 Amp charging capacity
  • 12 Volt operation
  • Heavy-duty construction for reliable performance
  • Internal regulator for stable voltage control
  • External excitation system
  • Negative ground configuration
  • Single “A” pulley fitted
  • Suitable for automotive, agricultural, industrial, and custom applications

Specifications

Specification Details
Part Number 65-3124HP
Brand JAYLEC
Voltage 12V
Amperage 145A
Mount Leg ID 80mm
Centre-to-Centre Mounts 175mm
Top Hole ID M8
Bottom Hole ID 10mm
Pulley Type Single “A”
Pulley Grooves 1
Pulley Diameter 84mm
Regulator Type Internal

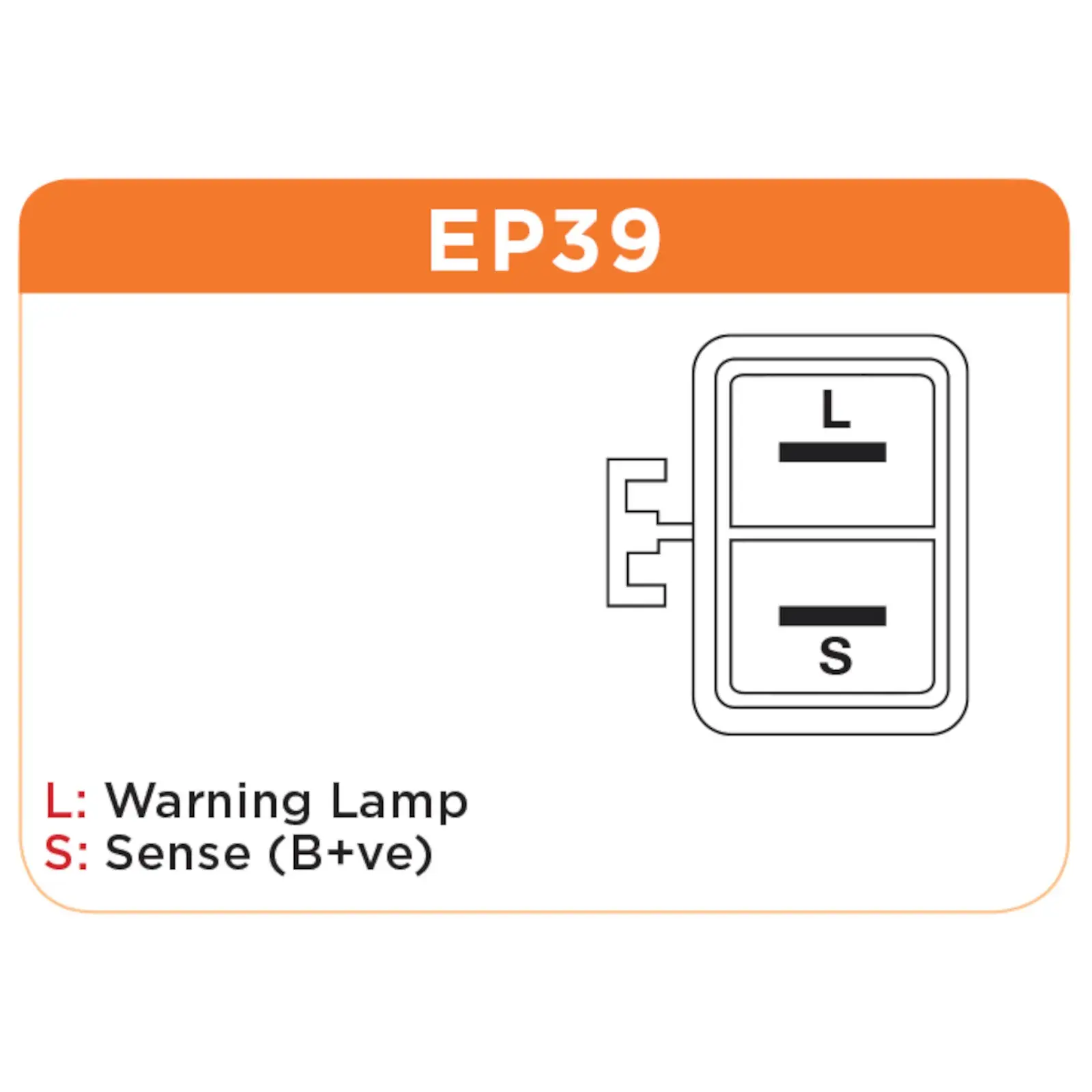

Plug Type EP39
Terminals B+, L, S
Excitation External
Ground Negative
Weight 8.0kg

*This product is an aftermarket product that is designed to fit the above mentioned vehicle(s), any mention of vehicle brand or model is only to allow you to establish the correct fitment for your vehicle, and is not indicating that the part is manufactured by the original vehicle manufacturer.

(65-3124HP)

SKU 65-3124HP
Brand JAYLEC
Shipping Weight 3.8000kg
Shipping Width 0.200m
Shipping Height 0.250m
Shipping Length 0.200m
Shipping Cubic 0.010000000m3
Unit Of Measure ea
