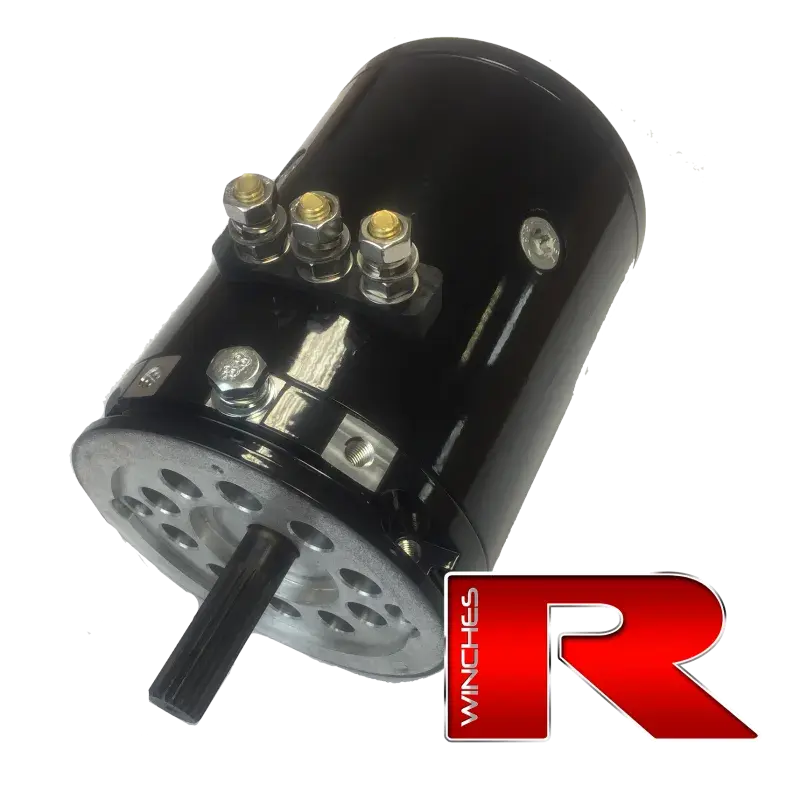

This motor has been developed and designed by RED Winches from the needs and wants of people into serious off-roading.

Under real world testing it has proven to be an exceptionally powerful motor, staying faster and stronger for longer.

This winch motor is the ultimate provider of power and speed for your winch.

Build features:

  • Twin bearing setup (Front and Back)
  • Heavy duty brush pack, for those that want to over-volt
  • Dedicated mounting holes on the rear of the motor end plate for your motor solenoid
  • Flat rear cover, allowing mounting of the motor solenoid easier
  • High quality, robust commutator and brush setup
  • More efficient design

The motor also benefits from a unique RED Winch designed quick release mechanism.

Allowing the motor to be changed quickly in the field should in the unlikely event you have a motor you need to change.

The motor can be swapped in 20-30secs easily, with no need to remove the motor solenoid or bus bars on top of the motor.

Saving crucial time when competing.

The OX motor can be fitted to all RED Winch products, apart from the Atom winch.

The OX Motor will not fit the orginal Hornet1 due to the centre distance betwen the motors on the Hornet1 but our new motor the Lynx will, see realted products at the bottom of this page.

The OX Motor can fit winches that have traditional motors already fitted, like the the XP or BOW2, but some minor modificatiosn might be needed due to the increased body diameter

It will fit to nearly all current competition winches, if unsure plesae email us to check if it will fit.

It will fit onto your winch using either M6 location bosses (RED Winches, Storm Top Housing) or 1/4 UNC for WARN and non UK Winches.

For older Warn 8274 single motor top housing you will need the longer mounting studs.

Please specify mounting stud type in the configuration when ordering.

Spare studs can be ordered.

If you are after a motor control solenoid to control this motor, we also sell them, manufactured by Albright

The control voltage selection of an Albright solenoid (12v or 24v) is for the directional control voltage that wil be used / applied to the 3 spade terminals on the front of the Albright.

The Albright power terminals on top can transmit 12v & 24v through them as standard.

(OX24V)

SKU OX24V
Model # OX24V
Brand Red Winches
Shipping Weight 6.0000kg
Shipping Width 0.250m
Shipping Height 0.250m
Shipping Length 0.250m
Shipping Cubic 0.015625000m3
