SUMO GEAR

Part #: TOY-LC-38-4.1

TOYOTA LAND CRUISER 60 / 62 / 7# Series

The 4.1 kit is the lowest low range option and is a must have for the extreme off road adventurer. It was designed for maximum off road performance while also providing superior on road performance as well.

In addition to lowering the low range, this kit also lowers the high range ratio to 1.077:1 which effectively turns a 4.11:1 ring and pinion ratio into a 4.43:1 making it a great alternative to re-gearing your differentials.

SPECIFICATIONS

• Hi-Range: 1.077:1
• Low Range: 3.981:1
• Transfer Case: 34mm and 38mm Spilt Style
• Models: Land Cruiser 60/62/7#
• Origin: Made in Japan

Product Details / Technical Info

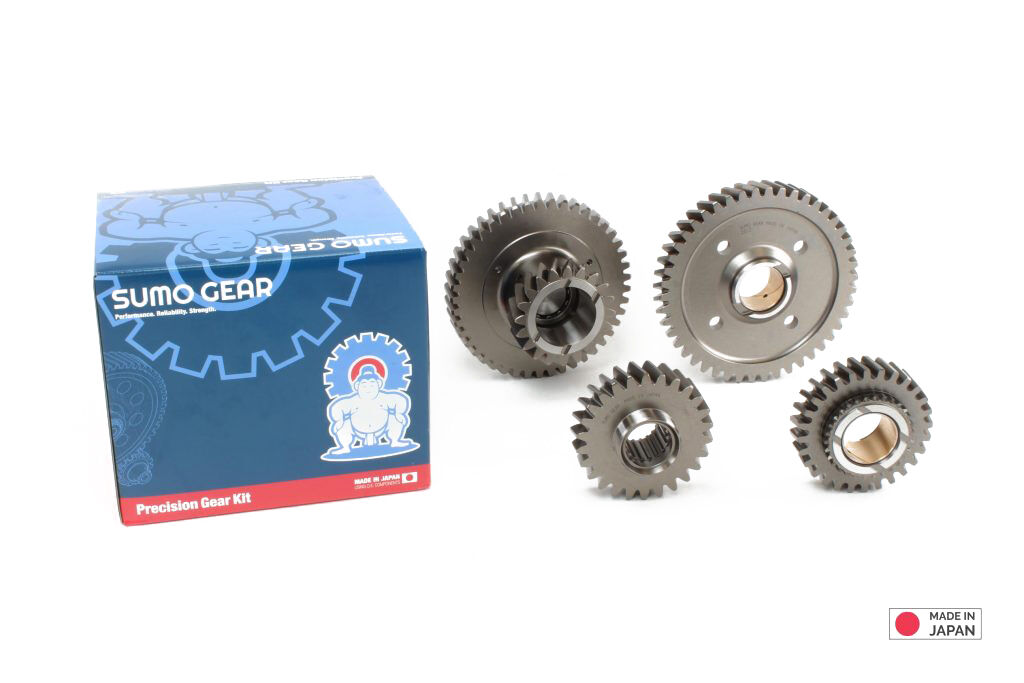

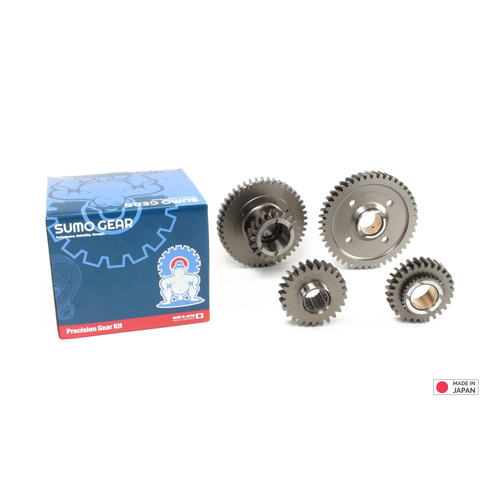

Kit contents for TOY-LC-38-4.1

• (1) Input gear = 26
• (1) Idler gear = 45 and 20
• (1) Low gear = 46
• (1) Hi gear 28
• Hi speed ratio = 1.0 -> 1.077
• Low speed ratio = 1.964 -> 3.98 (type 1)
• Low speed ratio = 2.296 -> 3.98 (type 2)

Fits - 6#. 7# LC with 38MM Idler Shaft / 1990 on 7# with split case Kit can be used in T/C with 34mm idler shaft by using TOY-38-34-KT By changing the hi ratio to 1.10 it is the same as going from 4.11:1 diff ratio to a 4.56:1 making it a great alternative to re-gearing your differentials **Transfer case housing requires machining to install low speed gear**
