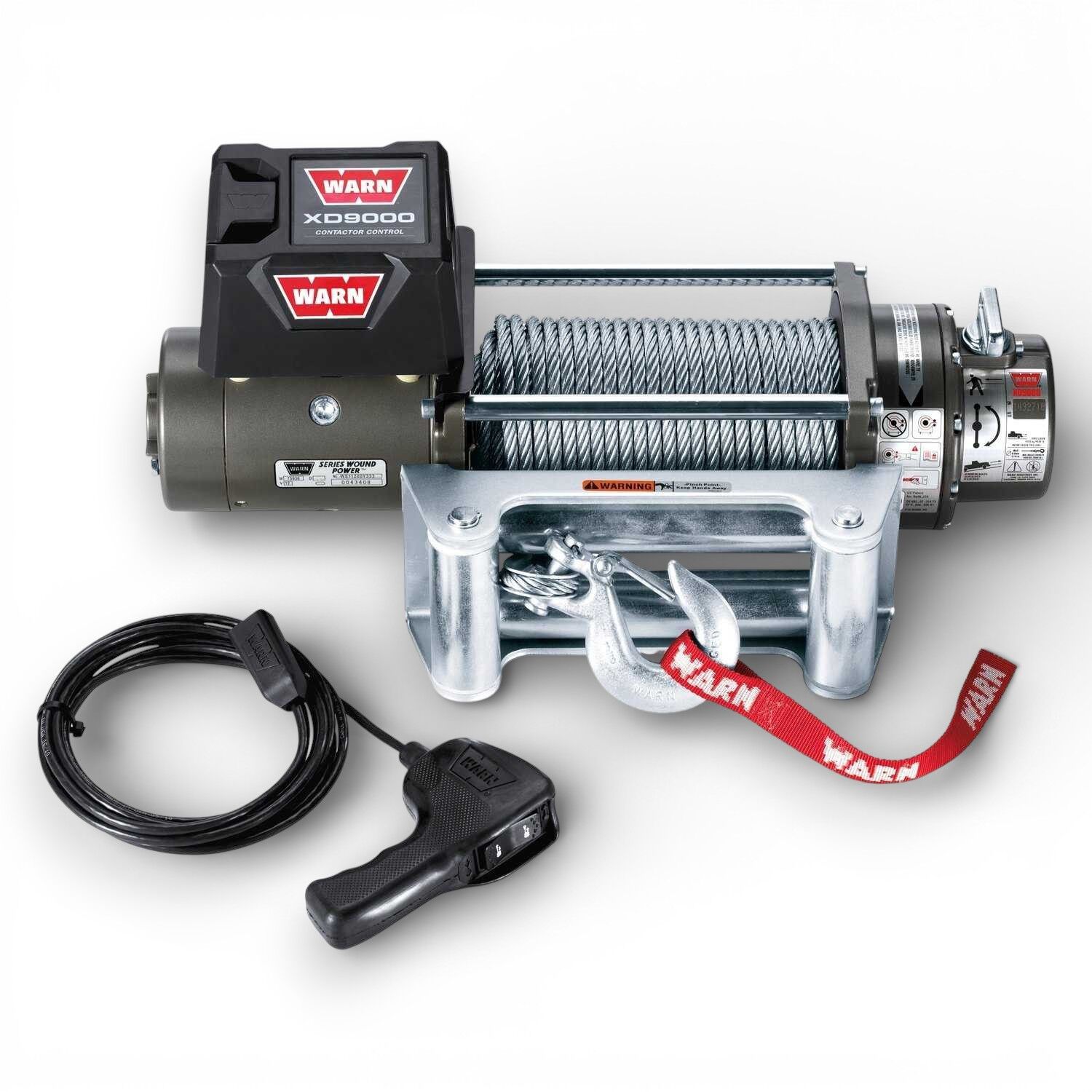

WARN XD-9000 Winch – Steel Cable Model

The WARN XD-9000 is a rugged, dependable 9,000 lb recovery winch built for serious off-road performance. Designed with a durable steel cable and proven WARN engineering, this winch delivers reliable recovery in the harshest conditions.

Product Overview

This original steel cable version of the XD-9000 maintains all the strength and dependability WARN is known for. Perfect for heavy-duty recovery, this winch comes with a standard roller fairlead and is ideal for 4WD enthusiasts who want traditional steel cable performance.

Key Features

  • Genuine WARN XD-9000 9,000 lb rated line pull
  • Durable steel cable (original configuration)
  • Standard roller fairlead for smooth line handling
  • 12V high-speed series-wound motor (~4.6 hp)
  • 3-stage planetary geartrain, 156:1 ratio
  • Sliding ring gear freespool clutch
  • Automatic direct-drive cone brake
  • Handheld 12 ft (3.7 m) remote switch
  • Powder-coated finish for corrosion resistance

Performance Specifications (12V, first layer of drum)

Line Pull (lbs/kg) Line Speed (ft/min / m/min) Motor Current (amps)
0 lb / 0 kg 38 ft/min / 11.6 m/min 70 A
2,000 lb / 910 kg 14.4 ft/min / 4.4 m/min 180 A
4,000 lb / 1,810 kg 11 ft/min / 3.35 m/min 255 A
6,000 lb / 2,720 kg 8.67 ft/min / 2.64 m/min 330 A
8,000 lb / 3,630 kg 6.88 ft/min / 2.10 m/min 415 A
9,000 lb / 4,080 kg 6.38 ft/min / 1.94 m/min 460 A

Physical & Mounting Specs

  • Drum: 2.5" diameter × 9" length (6.4 cm × 23 cm)
  • Weight: ~35 kg (78 lbs)
  • Mounting bolt pattern: 10.0" × 4.5" (254 mm × 114.3 mm)
  • Recommended battery: Minimum 650 CCA

Why Choose the Steel Cable XD-9000?

  • Proven WARN XD-9000 durability and strength
  • Traditional steel cable for heavy-duty recoveries
  • Reliable roller fairlead for smooth line handling
  • Durable powder-coated finish for long life

(28500)

SKU 28500
Model # 28500
Brand WARN
Shipping Weight 41.0000kg
Shipping Width 0.510m
Shipping Height 0.200m
Shipping Length 0.660m
Shipping Cubic 0.067320000m3
