WinchGear 8274 Brake Shaft Upgrade Kit (Without Large Cam) – High Mount Winches

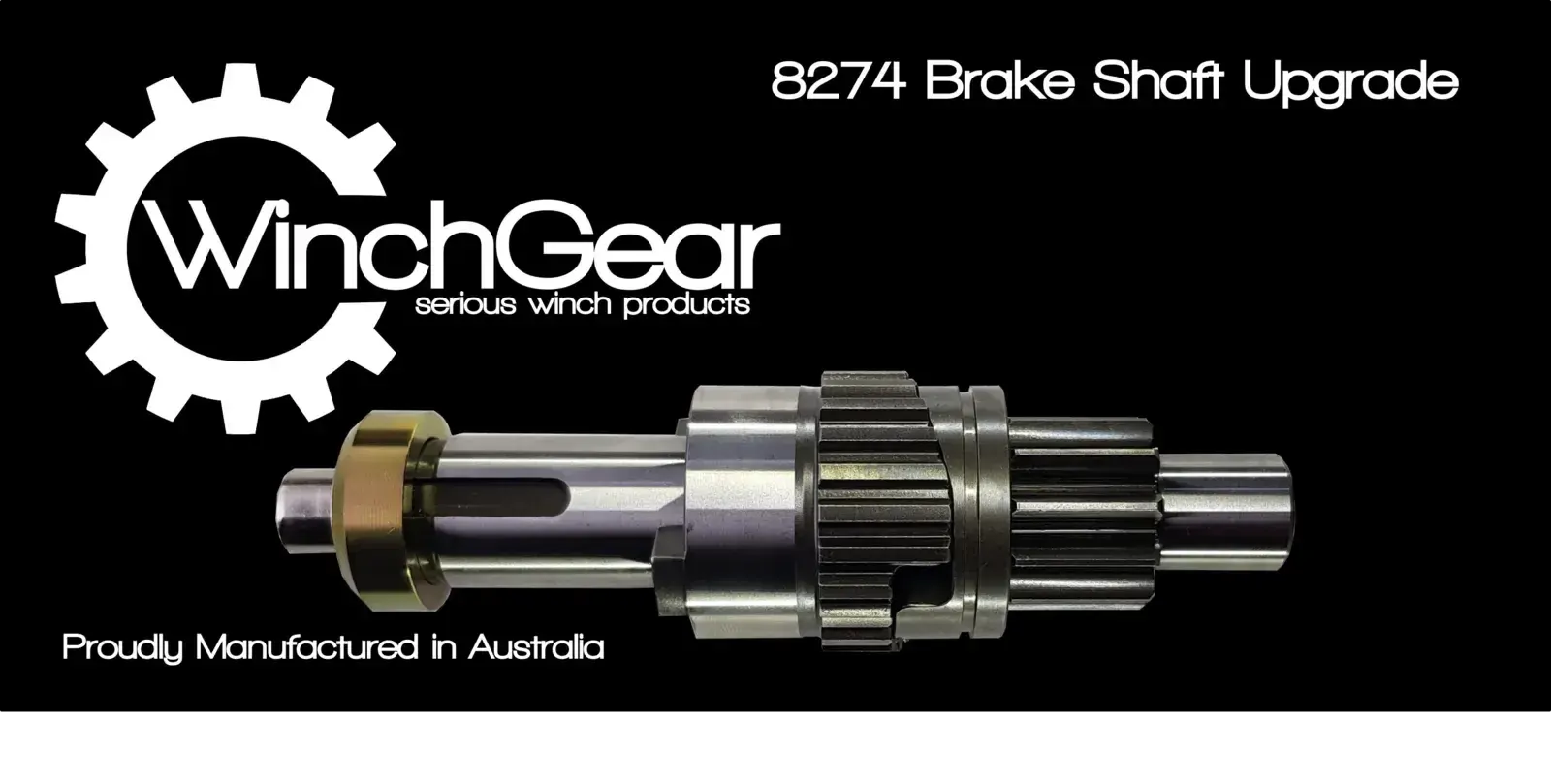

The WinchGear 8274 Brake Shaft Upgrade Kit (Without Large Cam) is a hardened, upgraded brake shaft assembly designed for Warn 8274 high mount winches. This kit eliminates known weak points in the factory shaft and replaces the brake circlip with a secure cap and bolt. The kit does not include a large cam gear, allowing you to reuse your existing one if in good condition or upgrade separately.

Features

• Upgraded brake shaft designed for Warn 8274 high mount winches
• Australian made, heat treated and ground EN36 steel for strength and durability
• Eliminates known weak points in the original factory shaft
• Replaces the brake circlip with a cap and bolt for improved reliability
• Does not include large cam gear — reuse your current cam or upgrade separately

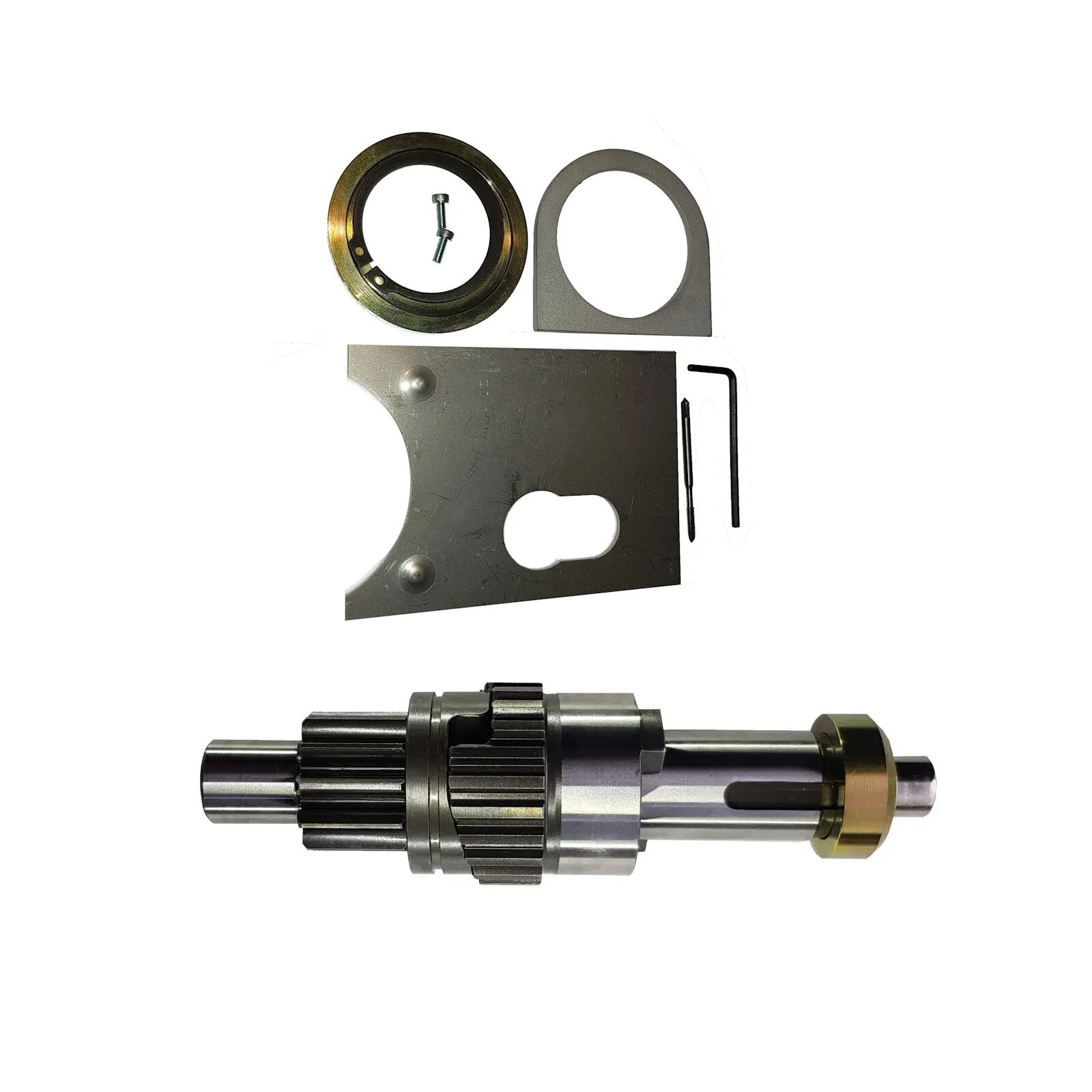

• Includes small cam gear, wedge shim and all necessary installation hardware

Applications

• Strengthening the brake shaft and internal drive for Warn 8274 high mount winches
• Brake assembly rebuilds and upgrades
• Suitable for off‑road winch maintenance and heavy use environments
• Reuse existing large cam gear or pair with optional upgrade cam

Specifications

Notes

This brake shaft kit replaces the original Warn 8274 shaft and is designed to eliminate common stress points. It allows reuse of your existing large cam gear or the option to upgrade to a more robust large cam separately. Ensure compatibility with your winch model before installation.
