Rear Adjustable Panhard Rod with RUBBER bushes
GQ Nissan Patrol Coil Sprung

Ford Maverick

S1 GU Patrol

Stealth black

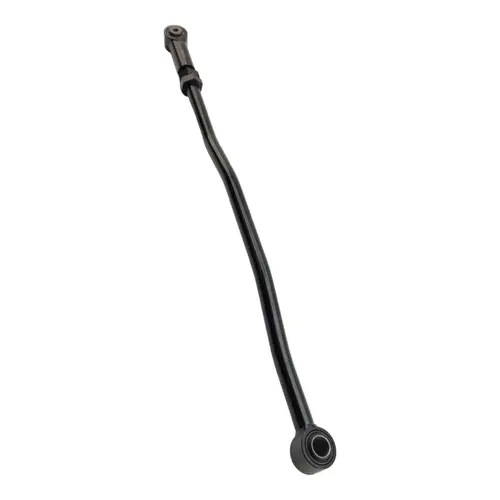

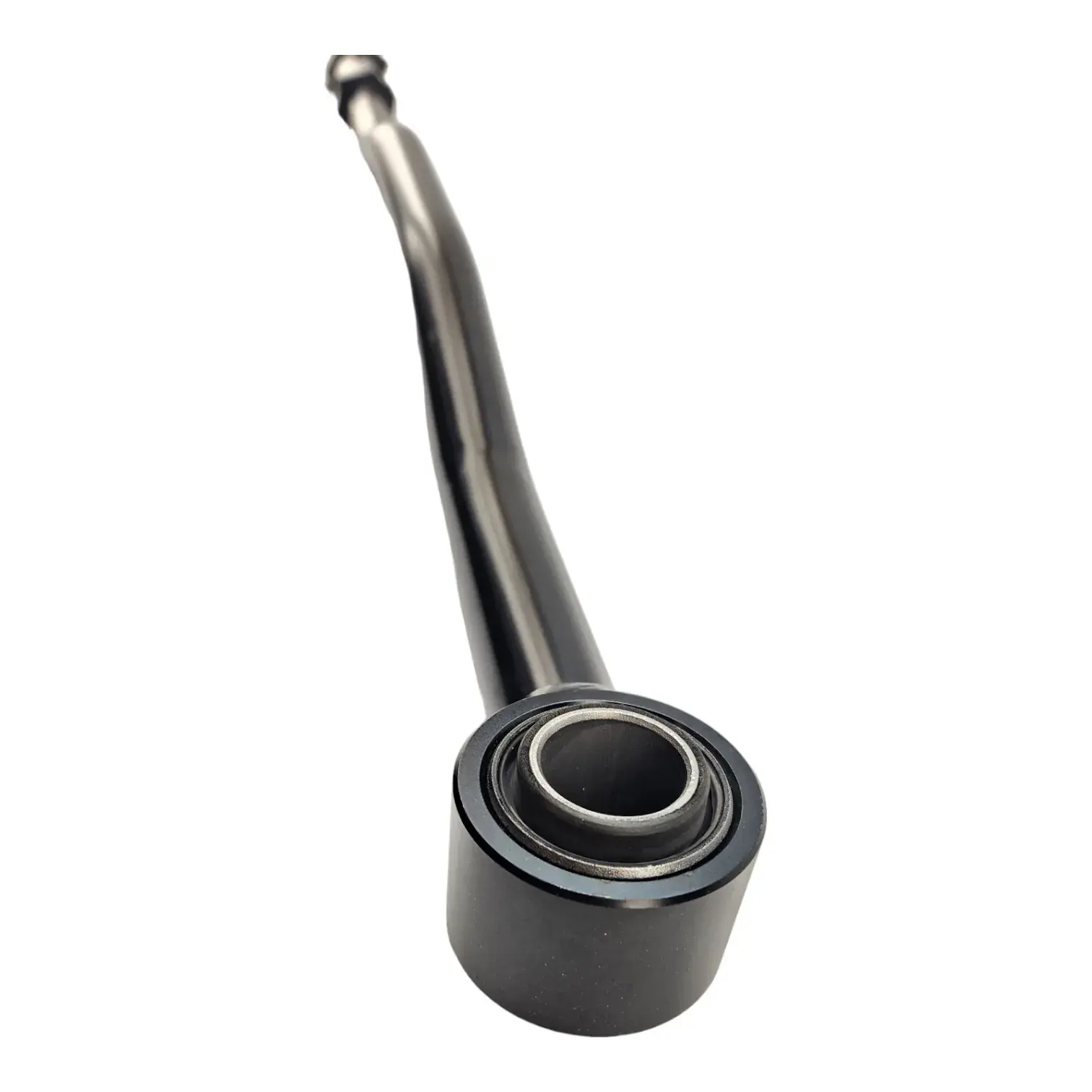

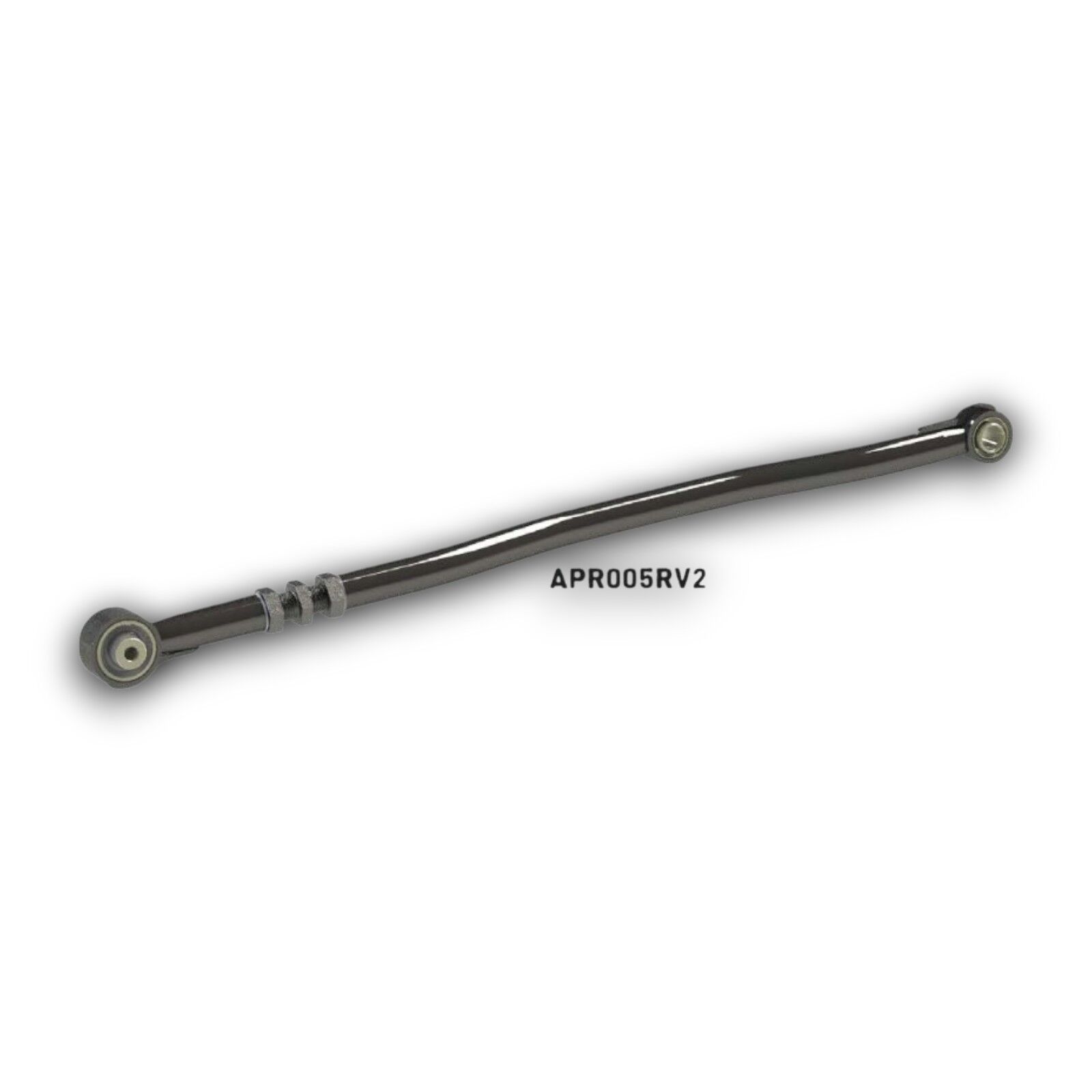

This listing is for one brand new ADJ Panhard rod suit Patrol, If you have a GU and unsure if this is right for you, The bushes should be the same Outer Diameter size, If you have the later model the diff end bush will be at least half as big again and it will be a spherical bush, We have these in our store aswell.


ADJ Panhards can be fitted to any vehicle above 2" of lift,The higher you lift the vehicle the further the body moves of the centre line to chassis, on a 3" lift it is approx 5-10mm, 4" is approx 15-20mm off centre. At 4" of lift you will need to fit adjustable Panhards.I personally have a 3" lifted GQ LWB wagon and have both front and rear ADJ panhards to ensure it is straight as possible,



I personally have a 3" lifted GQ LWB wagon and have both front and rear ADJ panhards to ensure it is straight as possible, For those vehicles that have a AUX belly fuel tank, you will not be able to get it back spot on centre, With the lift the Tail shaft will rub on the tank, You will be able to correct within 10mm of centre but generally not dead centre.

They are easy enough to install at home in the driveway,

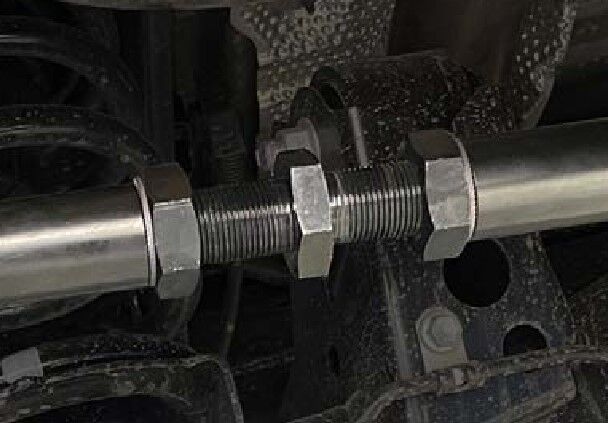

Firstly remove the original panhard, knowing the measurements given above you can generally adjust the new arm to be that much longer then the std arm, then trial fit and you can measure if it is correct.

MEASURMENT
In order to ensure you have it as centre as possible, you can measure between the back of the disc rotor/drum to the chassis rail, compare this measurement from left to right to get it centered. Or you can just do it by eye.

When you are happy it is at the correct length, it is recommended to apply a small amount of loctite to ensure the locking nut stays secure, the cup washer should be facing outwards, so it mushrooms the bush out, not captures the bush, have a look at the washer, you will see what we mean.



In stock ready to go

(APR005R)

SKU APR005R
Brand Road Runner Offroad
Shipping Weight 6.9000kg
Shipping Width 0.150m
Shipping Height 0.150m
Shipping Length 1.050m
