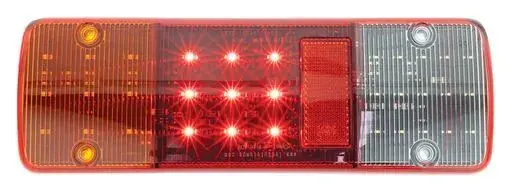

Hulk 4x4 LED Rear Combination Stop / Tail / Indicator / Reverse Lamp 12/24 Volt

Retrofit replacement unit for Toyota Landcruiser or Hilux Cab Chassis / Trayback vehicles


  • Red, Amber and White Illumination

  • Red and Clear PMMA Polycarbonate pattern free lenses with an in-built retro reflector

  • 9 x High Intensity Red LED's in Stop / Tail, 9 x High Intensity Amber SMD LED's in Indicator Lamp and

  • 15 x High Intensity White SMDLED's in the Reverse Lamp Module

  • Black ABS Plastic Housing can be screw mounted through the lens

  • Black ABS Plastic Housing with Metal Alloy L Shaped Bracket included

  • Surface Mount, low mounting depth for easy installation

  • 400mm Sheathed with 5 wires into Deutsch Plug

  • Fully encapsulated circuitry

  • Sealed against Dust and Moisture

  • 0.16amps at 12 Volt Current Draw for Stop function

  • 0.01amps at 12 Volt Current Draw for Tail function

  • 0.15amps at 12 Volt Current Draw for Indicator function

  • 0.18amps at 12 Volt Current Draw for Reverse function

  • 30,000 Hours LED Lifespan

  • ADR 49/00 Rear Stop Lamp specifications approved

  • ADR 6/00 2A Rear Indicator Lamp specifications approved

  • ADR 1/00 Reverse Lamp specifications approved

  • ADR 47/00 Reflector specifications approved

  • Refer to ADR 13/00 for mounting instructions

  • IP67 Rating

  • Blister Qty: 2

  • 2 Years Warranty


SKU HU9648
Brand Hulk
Shipping Weight 1.0000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
