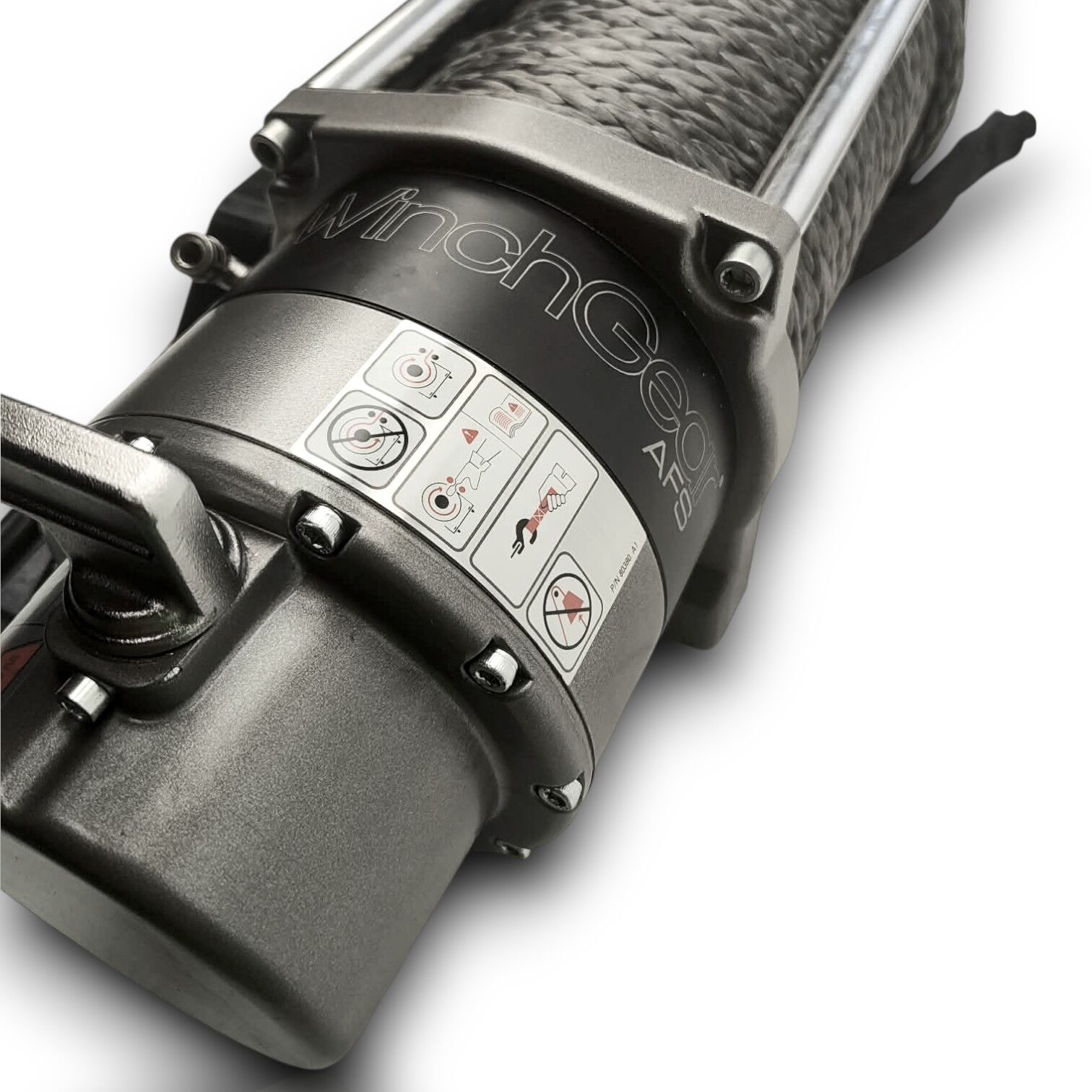

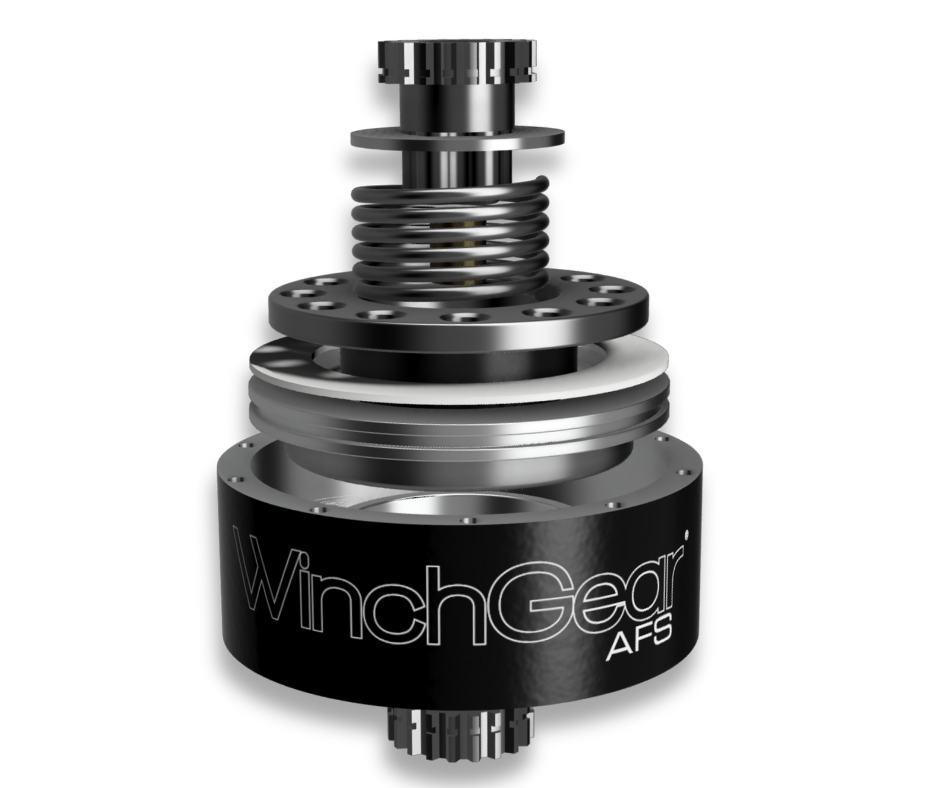

WinchGear AFS - Air Freespool System

True drum disconnect.


Most air freespool systems simply help move the factory clutch lever. The WinchGear AFS goes further, mechanically separating the drum from the gearbox for genuine low-drag freespool performance.

Key Benefits

True mechanical drum disconnect design

Extremely low drag freespool for rapid line deployment

Air actuated engagement for fast, reliable operation

Positive mechanical re engagement ​​​​​​

Improved safety no manual access to the winch required​​​​​​

Ideal for competition and extreme offroad use

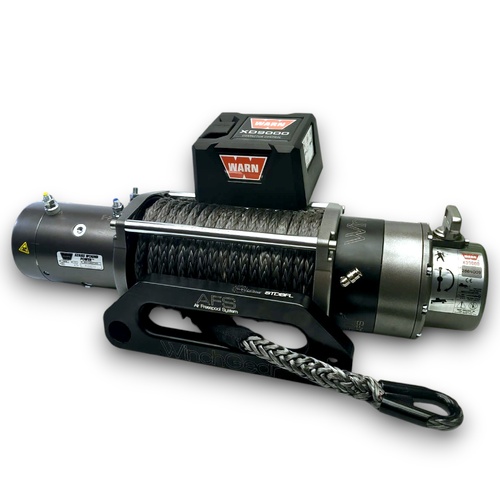

WARN XD9000 Winch – Synthetic Rope Configuration

The legendary WARN XD9000 platform delivers 9,000 lb of proven recovery performance, upgraded with modern synthetic rope for safer handling and reduced weight.

Key Features

Genuine WARN XD9000 – 9,000 lb rated line pull

30 m × 10 mm grey Sniper Core™ synthetic rope

WinchGear billet aluminum fairlead

12V high speed series-wound motor (~4.6 hp)

3 stage planetary geartrain, 156:1 ratio

Automatic direct drive cone brake

Handheld 12 ft (3.7 m) remote control

Durable powder-coated finish





Performance Specifications

Line Pull: 9,000 lb / 4,080 kg

Line Speed (no load): 38 ft/min / 11.6 m/min

Max Current Draw: ~460 A





Physical & Mounting Specifications

Drum: 2.5" diameter × 9" length (6.4 cm × 23 cm)

Weight: ~35 kg (bare winch)

Mounting Pattern: 10.0" × 4.5" (254 mm × 114.3 mm)

Recommended Battery: Minimum 650 CCA





Installation Notes

The WinchGear AFS adds approximately 50 mm to the gearbox end of the winch

​Clearance must be checked in tight bull bar or winch cradle setups

WinchGear® AFS is a registered design under Australian Design No. 202214842. Unauthorised copying, reproduction, or imitation of this product or its design may constitute a breach of applicable intellectual property laws.
