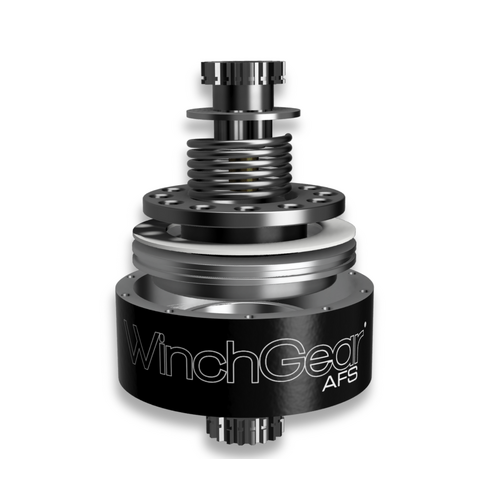

WinchGear AFS

A true Drum disconnect Air Freespool system


Engineered to suit WARN mid-frame low mount winches.

Unlike clutch style air freespool systems that simply assist the factory lever, this system physically disconnects the winch drum from the gearbox. The result is a low drag freespool, faster rope deployment, and consistent performance.
Designed for serious off roaders and competition vehicles, the WinchGear Air Freespool allows freespool engagement from inside the vehicle or via external air control keeping you out of the bull bar and in control during recoveries.


Key Benefits

True drum disconnect design not a clutch assist

Super low drag freespool for rapid line deployment

Air actuated engagement for fast, reliable operation

Positive mechanical engagement when reconnected

Improved safety no need to access the winch by hand

Ideal for competition and extreme off-road use

Fitment & Installation Notes

Suits WARN mid-frame low mount winches:
M8000 XD9000 XP9500

Some modification is required for installation

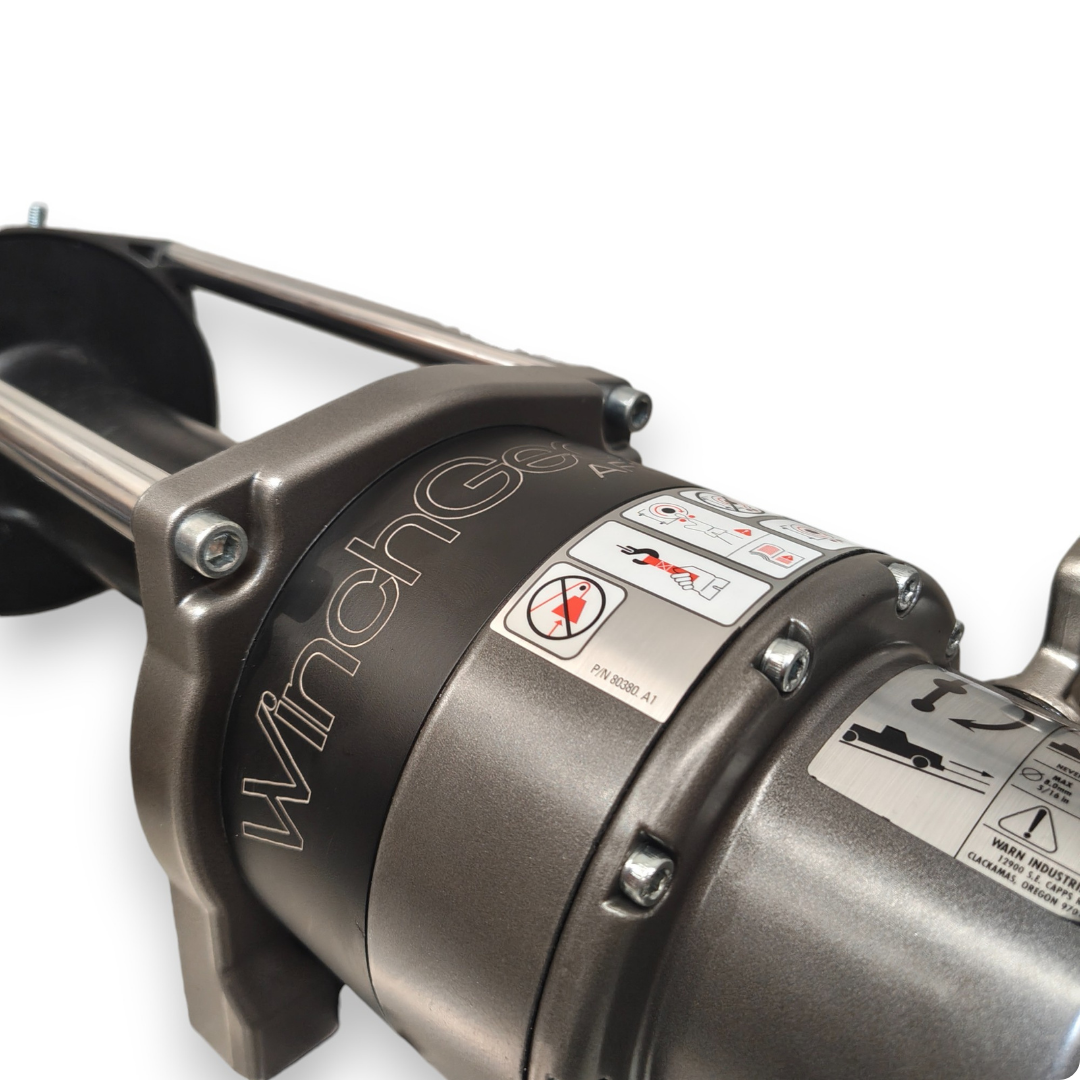

Adds approximately 50 mm to the gearbox end of the winch

Clearance must be checked, particularly in tight bull bar or winch cradle setups

This system is designed for users who demand maximum freespool performance, understand the limitations of clutch-based designs, and want a proper mechanical drum disconnect solution.

WinchGear® AFS is a registered design under Australian Design No. 202214842. Unauthorised copying, reproduction, or imitation of this product or its design may constitute a breach of applicable intellectual property laws.
