WARN 8274-50 Hi Mount Winch

This is a brand new WARN winch 8274-50 Hi Mount Winch



It doesnt need much explanation, This is the std hi mount which is the starting point for almost all comp winches, available with a 6hp motor at a additional $450 fitted (trade in for std 4.6hp, Contact us to organise)

Includes a free Winch Damper Blanket, 1 x rated Snatch block, 2 x rated Bow shackles.

Country areas may have a freight surcharge applied, Please contact to check

Alloy Hawse Fairlead @ $80

Full warranty offered by Road Runner Offroad - no need to jump through hoops!

At 150 feet of 5/16" cable, it also has a very long line capacity. Its unique spur-gear drive train and upright design are totally rugged. Its braking system delivers smooth operation with superior heat dissipation. Roller fairlead, remote control on 12-ft. lead, free spool clutch and battery cables are included.

M8274-50 SPECS/PART NUMBERS

Part Number: PN 38631 CE (12V DC) , PN 375832 CE (24V DC)

Rated Line Pull: 8000 lbs. (3630 kgs.) single-line

Motor: 12V 4.6 hp/3.43kw, 24V 2.5 hp/3.43kw, Series WoundTM

Remote Control: Remote switch, 12' (3.7m) lead

Geartrain: Spur Gear

Gear Ratio: 134:1

Lubrication: 6 oz. SAE 30 (non-detergent)

Clutch (freespooling): Sliding Motor Pinion Gear

Brake: Automatic, disc type

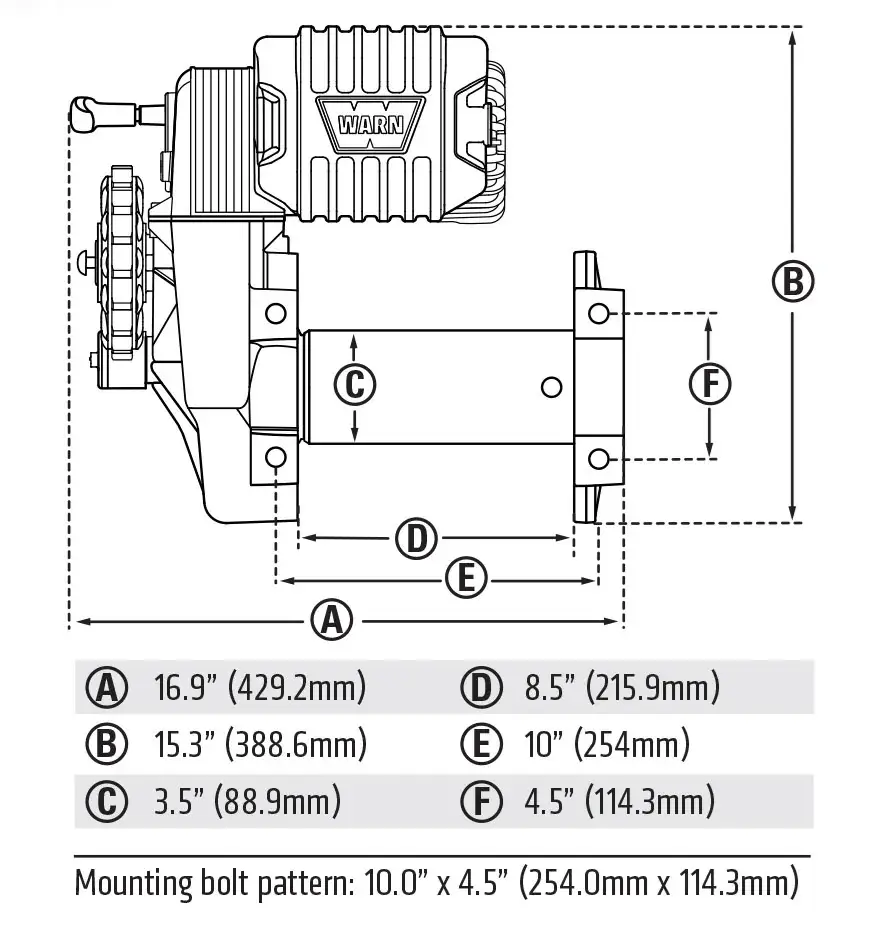

Drum Diameter/Length: 3.5"/8.5" (9cm/22cm)

Weight: 110 lbs. (50 kgs.)

Wire Rope: 150', 5/16" diameter (46m, 8mm diam.)

Fairlead: Roller

Recommended Battery: 650 CCA for winching

Battery Leads: 2 gauge, 72" (1.83m)

Finish: Argent Gray Powder Coat with Clear Coat

Nuts: PN 7616, L/W: PN 2146

Bolts: PN 7165

CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble.



12V DC PERFORMANCE SPECS

Line Pull
Lbs.(Kgs.)

Line Speed
FT./min(M/min.)

Motor
Current

Pull by layer
layer/Lbs(Kgs.)

0

73.4(22.4)

55 amps

1/8000(3629)

2000(910)

22(6.71)

190 amps

2/7460(3384)

4000(1810)

12(3.66)

275 amps

3/6980(3166)

6000(2720)

9.50(2.90)

350 amps

4/6620(3003)

8000(3630)

6.10(1.86)

450 amps

5/6290(2853)



24V DC PERFORMANCE SPECS

Line Pull
Lbs.(Kgs.)

Line Speed
FT./min(M/min.)

Motor
Current

Pull by layer
layer/Lbs(Kgs.)

0

65(19.8)

24 amps

1/8000(3629)

2000(910)

23(7.01)

96 amps

2/7460(3384)

4000(1810)

17(5.18)

149 amps

3/6980(3168)

6000(2720)

13(3.96)

203 amps

4/6620(3005)

8000(3630)

7.9(2.41)

273 amps

5/6290(2855)

Above performance specs are based on first layer of drum

It is recommended a 650CCA (Cold Cranking Amp) Battery be used with this winch to ensure it receives the power it needs to operate to specs without failure, Smaller batteries will increase the amount of amps being drawn from the battery, creating heat and as a result possibly burn out the contacts in the motor.







(M8274-50)

SKU M8274-50
Brand WARN
Shipping Weight 55.0000kg
Shipping Width 0.450m
Shipping Height 0.280m
Shipping Length 0.540m
