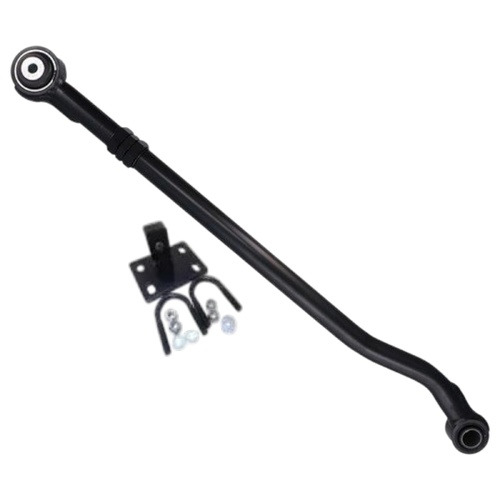

FRONT Adjustable Panhard Rod with Rubber bushes

suits:

Series 2 on GU Nissan Wagon Patrol Coil Sprung (Wagon Only)

12/2000 onwards With larger chassis end Sepherical bush

Does not suit Cab Chassis Models

Stealth black

33mm Diameter STKM11A steel

This listing is for one brand new ADJ Panhard rod suitseries 2Model GUPatrols, The front and rear panhards rod will have different size bushes, chassis end will be a larger sepherical type bush, if they are the same size youhave series 1Patrol, We have these in our store aswell. please see listing for GQ patrol panhards.

These panhards are supplied with a revised fine pitch thread, This is better than most other’s on the market, as the fine pitch helps the nut bind into the thread, and not come undone due to corrugations ect.

ADJ Panhards can be fitted to any vehicle above 2" of lift,The higher you lift the vehicle the further the body moves of the centre line to chassis, on a 3" lift it is approx 5-10mm, 4" is approx 15-20mm off centre. At 4" of lift you will need to fit adjustable Panhards.I personally have a 3" lifted GQ LWB wagon and have both front and rear ADJ panhards to ensure it is straight as possible,

I personally have a 3" lifted GQ LWB wagon and have both front and rear ADJ panhards to ensure it is straight as possible,

They are easy enough to install at home in the driveway,
Firstly remove the original panhard, knowing the measurements given above you can generally adjust the new arm to be that much longer then the std arm, then trial fit and you can measure if it is correct.

MEASURMENT
In order to ensure you have it as centre as possible, you can measure between the back of the disc rotor/drum to the chassis rail, compare this measurement from left to right to get it centered. Or you can just do it by eye.

When you are happy it is at the correct length, it is recommended to apply a small amount of loctite to ensure the locking nut stays secure, the cup washer should be facing outwards, so it mushrooms the bush out, not captures the bush, have a look at the washer, you will see what we mean.

That's pretty much it, any questions ask away.

Please note this product is an aftermarket product that is designed to fit the above mentioned vehicle(s), any mention of vehicle brand or model is only to allow you to establish the correct fitment for your vehicle, and is not indicating that the part is manufactured by the original vehicle manufacturer.
