King Cobra Red Winches Medium +76 Drum Single Motor Adventure Ratio
$5,350.00
In Stock

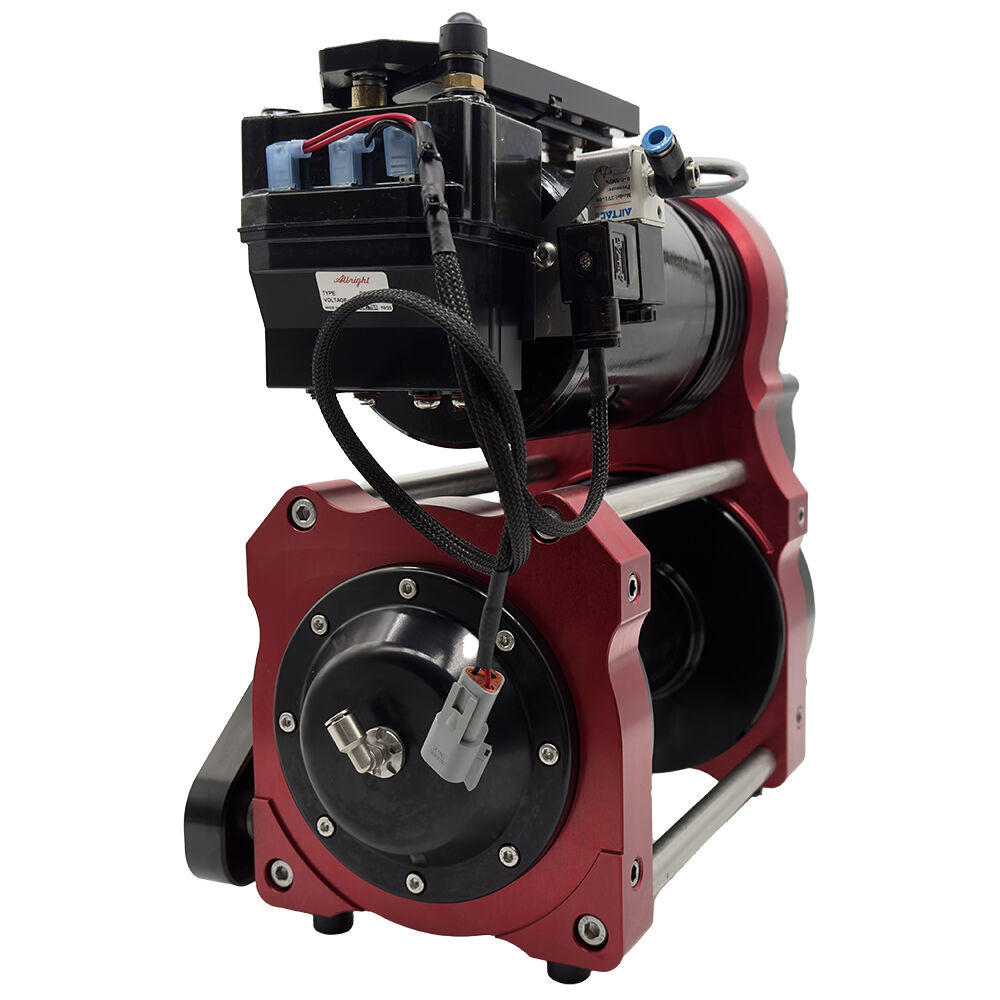

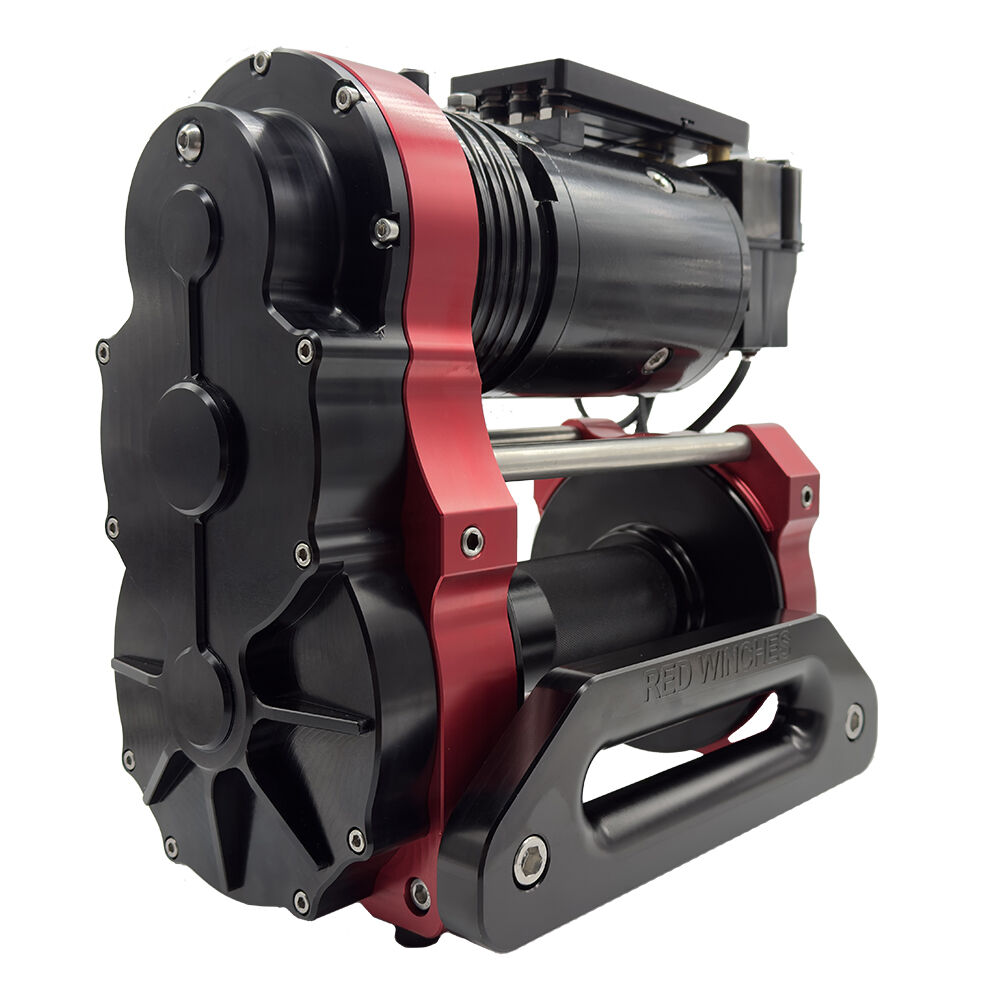

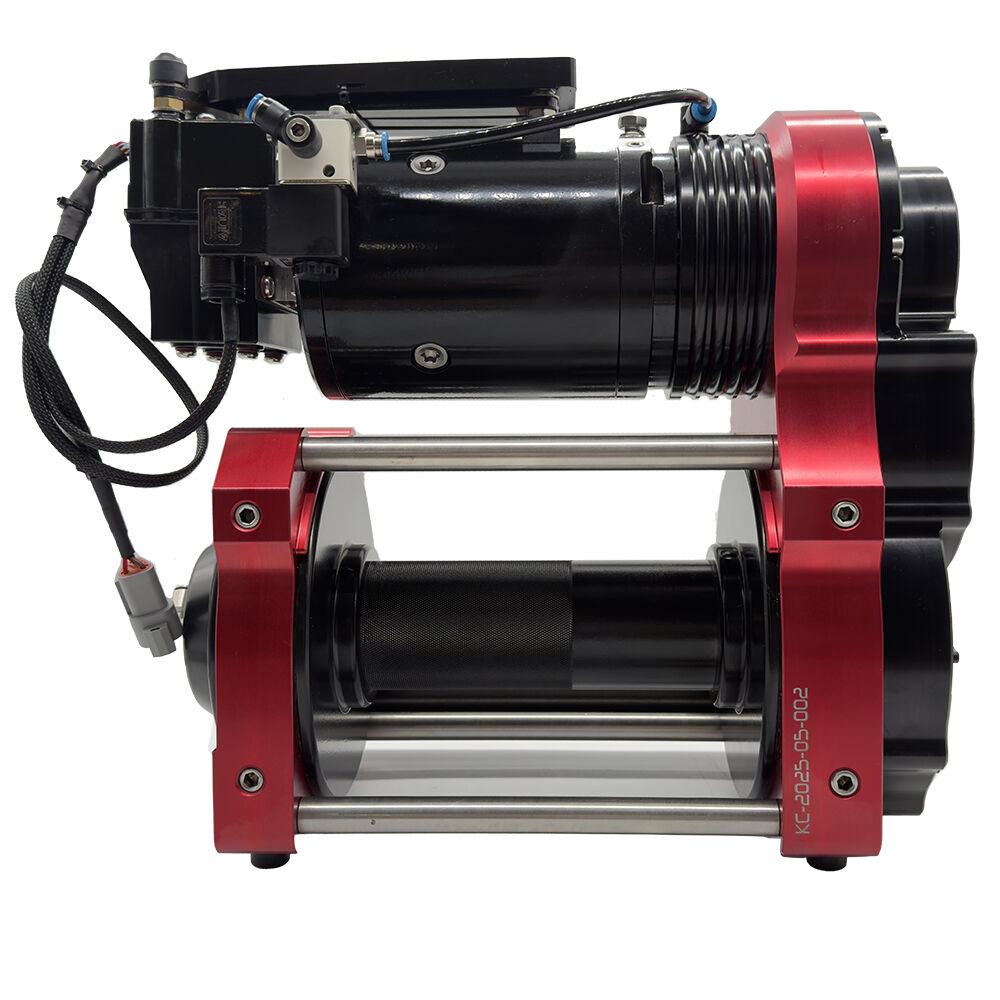

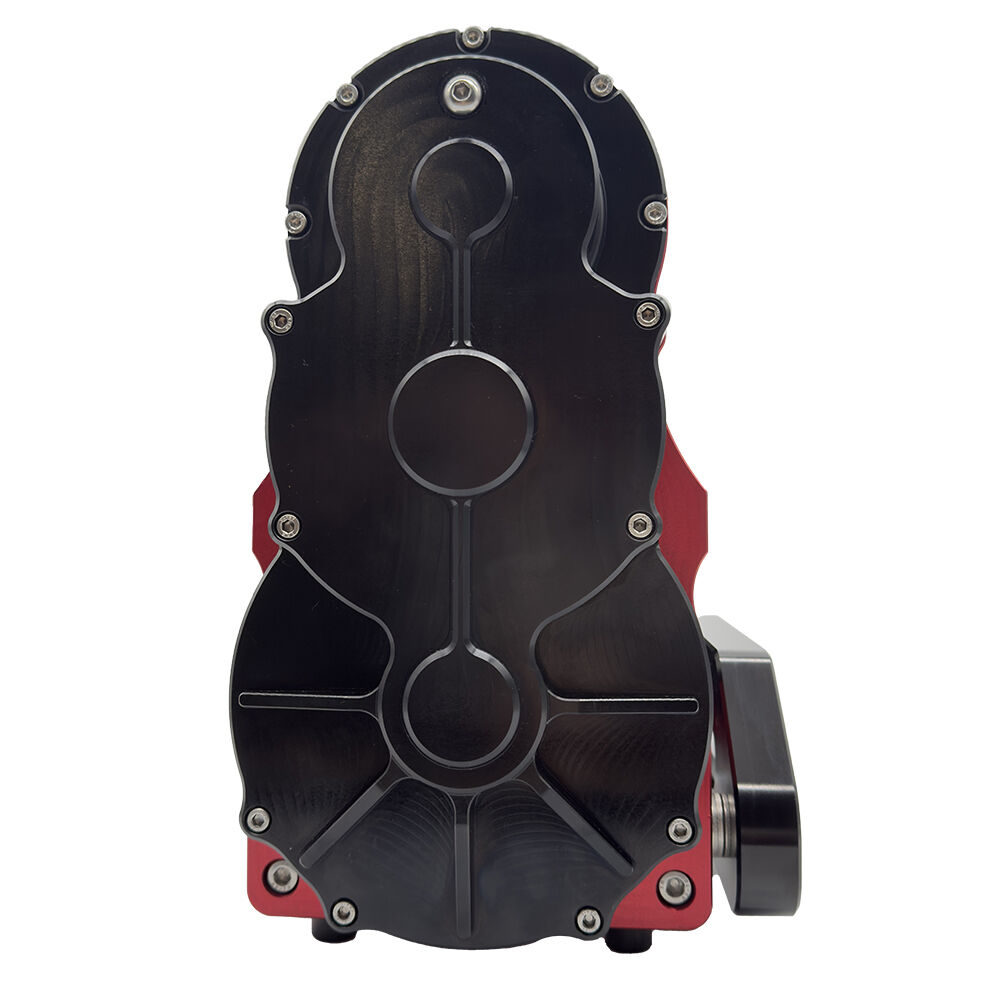

King Cobra Red Winches Medium +76 Drum Single Motor Adventure Ratio
The King Cobra utilises a cascade-style gearbox to transmit the power from the motor down to the drive shaft. The gears are manufactured from chromium molybdenum steel and case hardened to give maximum strength (Up to 1230 N/mm2) and excellent durability. The gearbox runs in semi-liquid grease, not oil, making it much easier to service.
Key Features & Benefits
7hp Single Motor or 14hp Twin Ox Motor — Unparalleled performance and versatility for every situation.
Free Spool — Full drum disconnect freespool design
CNC-machined aerospace aluminium body — Ensuring maximum durability and minimum stress.
Air Brake System — A patented system for superior control and stopping power.
High-Efficiency Electrical Setup — Featuring premium copper bus bars and Albright solenoids.
CNC Machined Aluminium Fairlead — Hawse fairlead CNC machined to give the best possiblebend radius.
Exceptional Pulling Capacity — From Race gearing at 2500kg (5500lbs) to Twin Motor Titan 11000kg (24200lbs).
High-Speed Operation — Up to 58m/min (190 ft/min) with Racegearing for rapid winching.
Choice of colours — either anodised or Cerakote (anodised red and black as standard)
Technical Specifications
| Final Gear Ratio | 138:1 |
|---|---|
| Pulling Capacity (Kg) | 5500 |
| Pulling Capacity (Lbs) | 12125 |
| No Load Line Speed (M/Min) | 27.7 |
| No Load Line Speed (ft/min) | 90.9 |
| Line Speed @ 1000Kg (M/Min) | 9 |
| Line Speed @ 1000Kg (ft/min) | 29.5 |
What's Included
- King Cobra Winch (medium drum, single motor, adventure ratio)
- 3m Wiring Loom Extension
- Plasma Lock
- Mounting Bolts
Drum Capacity
11mm Synthetic Rope: 48m
12mm Synthetic Rope: 36m
(KC-MD-ADV-SM-12V)
| SKU | KC-MD-ADV-SM-12V |
| Brand | Red Winches |
