X8288 8288lb12v 6.8hp Fast Electric 4WD 4X4 winch Synthetic rope 5yr warranty

Description
Specifications

ROAD RUNNER OFFROAD X8288 138:1 FAST WINCH

Finally.. A winch we are proud to put our name on!

The Road Runner Offroad range of winches have taken years of searching for the strongest, most reliable and best value for money winch. We believe we have come up with the ultimate.

Great performance, reliability, strength and a warranty we stand by and at a price that represents great value for money.

The X8288 RRO has the latest design 6.8hp motor with 138:1 gear ratio for faster line speed and quicker recovery speed.

Fully sealed high output (6.8hp) series wound motor.

Gearbox and motor sealing rings for excellent waterproofing (can be submerged underwater).

Heavy duty module 138:1 3 stage planetary gearbox.

Fast Gear Ratio for quick line speed and faster recovery.

Large recovery hook for easy attachment of tree truck protectors.

Hardened steel gears.

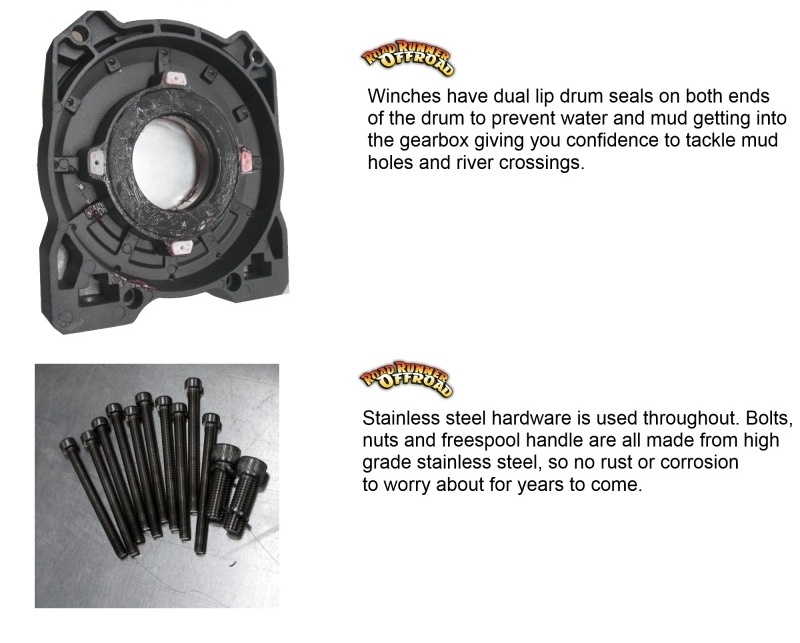

Twin lip sealed drum.

Automatic brake.

Stainless steel hardware.

Sliding ring gear freespool.

Sealed solenoid pack with silver-alloy contacts.

Safe and light synthetic rope included.

Comes with black annodised forged fairlead

Please note isolator switches are not provided with these winches and will need to be purchased individually.

We stand by our winches with a 5 year warranty against manufacturing defects.*

On top of this, if you have a problem in the first 6 months of ownership we will repair the issue regardless of if it was caused by defect or misuse!**

* Exclusions apply, please rear our full warranty statement HERE

** 6 month repair does not cover damage caused to the rope or cable.

Features Winch Motor and gearbox sealing rings for waterproofing

Replacement battery size for the Remote Control is 23A

Specifications
Rated line pull:	8288 Lbs (3760kgs) single line
Motor:	Series wound 6.8 hp /5.0kw,12V DC
Gear Train:	3 stage planetary
Gear ratio:	138:1
Clutch:	Sliding Ring gear
Braking action:	Automatic in the drum
Fairlead:	Aluminum hawse fairlead for synthetic rope
Synthetic rope:	Ø9.5mm ×26m
Drum size:	2.5"X9.0"(63mmX224mm)
Dimensions:	630mm X 168mm X 200mm
Mounting bolt pattern:	10"×4.5"(254mm×114.3mm)
Battery:	Recommended 650 CCA minimum for winching 25 square mm,72?(1.83m)
N.W:	33KG
Packing:	680mm X 360mm X 260mm

Line speed and motor current (first layer)
Line pull	Lbs	0	2000	4000	6000	8288
Line pull	Kgs	0	907	1814	2722	37.60
Line speed	FPM	65	13.5	9.2	7.5	6.7
Line speed	MPM	19.8	6	4.3	3.8	3.4
Motor current	Amps	58	160	220	280	360

Line pull and cable capacity
Layer of cable		1	2	3	4
Rated line pull per layer	Lbs	8288	6400	5300	4700
Rated line pull per layer	Kgs	3760	2903	2404	2132
Cable capacity per layer	Ft	19.6	43	72	105
Cable capacity per layer	M	6	13.2	22	32

(X8288S)

SKU	X8288S
Model #	X8288S
Brand	Road Runner Offroad
Shipping Weight	33.0000kg
Shipping Width	0.360m
Shipping Height	0.270m
Shipping Length	0.640m
