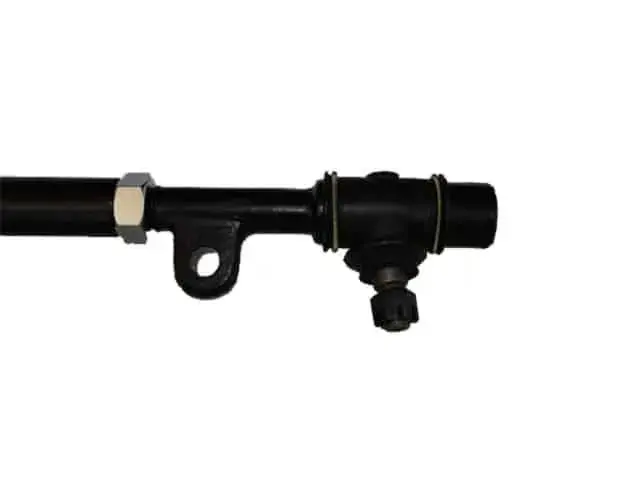

Heavy Duty Adjustable Draglink

to suit

Toyota Land Cruiser 76, 78, 79 series V8 Models

Adjustable Draglinks are supplied as standard on the Toyotas, If yours is damaged then this is a great Heavy Duty upgrade to suit your vehicle.

Some of the feature of this arm...

- Upgraded 30mm OD Tube
- Upgraded 5.7mm Wall Thickness

- 30mm extra internal thread
- Complete with Relay Rod Ends
- Heavy Duty Greasable Ends
- Lock Nut instead of External Clamp

This is a Heavy Duty item!, Exactly what you need in an arm that is positioned below the bull bar and in front of the diff!!

It is adjustable. It may be lengthened or shortened to straighten the steering wheel. If you have lifted your rig, It's likely the steering wheel points to the left. As the arms all point more downward with a suspension lift they get shorter along a horizontal plain and as such the steering box compensates, and the steering wheel points to the left.

The Drag link is the arm that goes from the steering box to the front left wheel. When you turn the steering wheel this arm pushes or pulls the front left wheel to steer. In standard form they are light duty, they are prone to damage as they are right out the front of everything and the tie rod ends form part of the arm -

They are easy enough to install at home in the driveway, The hardest bit is removing the original arm, It takes some persuasion with a hammer to loosen the draglink from the Pitman arm (Attached to the steering box) Strike the side of the Pitman arm to loosen.

When removed you can measure the front and back edge of the tyre, and turn the wheel until they are the same measurement, take this measurement and set your new ADJ Draglink. Mount the new draglink, tighten the castle nut, and make sure you put a new split pin in!!!

Generally they shouldn’t take long to change over.

A few mm adjustment can make a fair amount of difference so it is important to be as specific as possible, When you have finished if you are not happy with the Wheel, pull to the side, ect, it is recommended to get a professional wheel alignment.

All supplied with Greasable Heavy Duty Tie Rod ends.



Please note this product is an aftermarket product that is designed to fit the above mentioned vehicle(s), any mention of vehicle brand or model is only to allow you to establish the correct fitment for your vehicle, and is not indicating that the part is manufactured by the original vehicle manufacturer.

(TR4554)

SKU TR4554
Model # TR4554
Barcode # 9319478535978
Brand Road Runner Offroad
Shipping Weight 5.0000kg
Shipping Width 0.080m
Shipping Height 0.080m
Shipping Length 1.150m
Shipping Cubic 0.007360000m3
